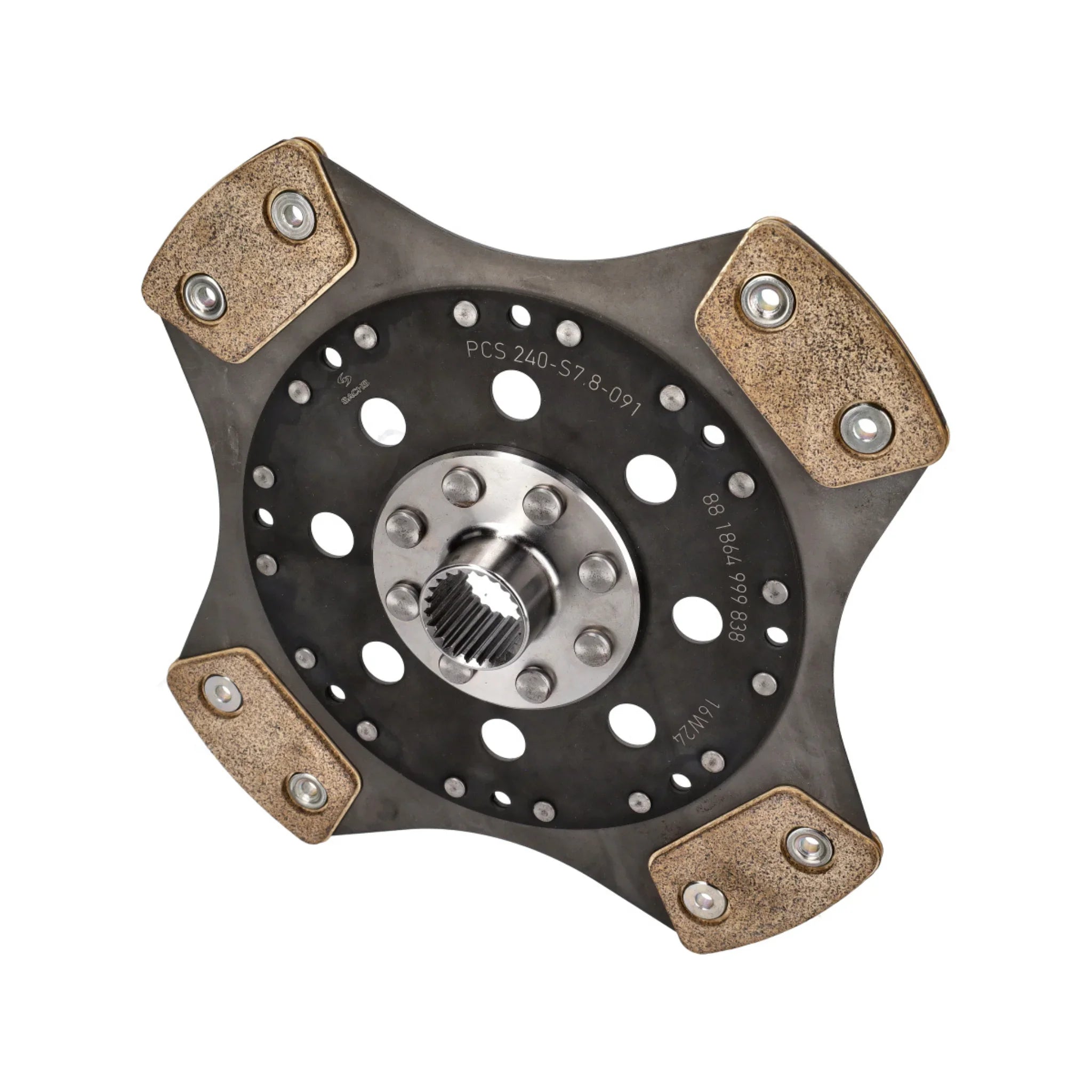

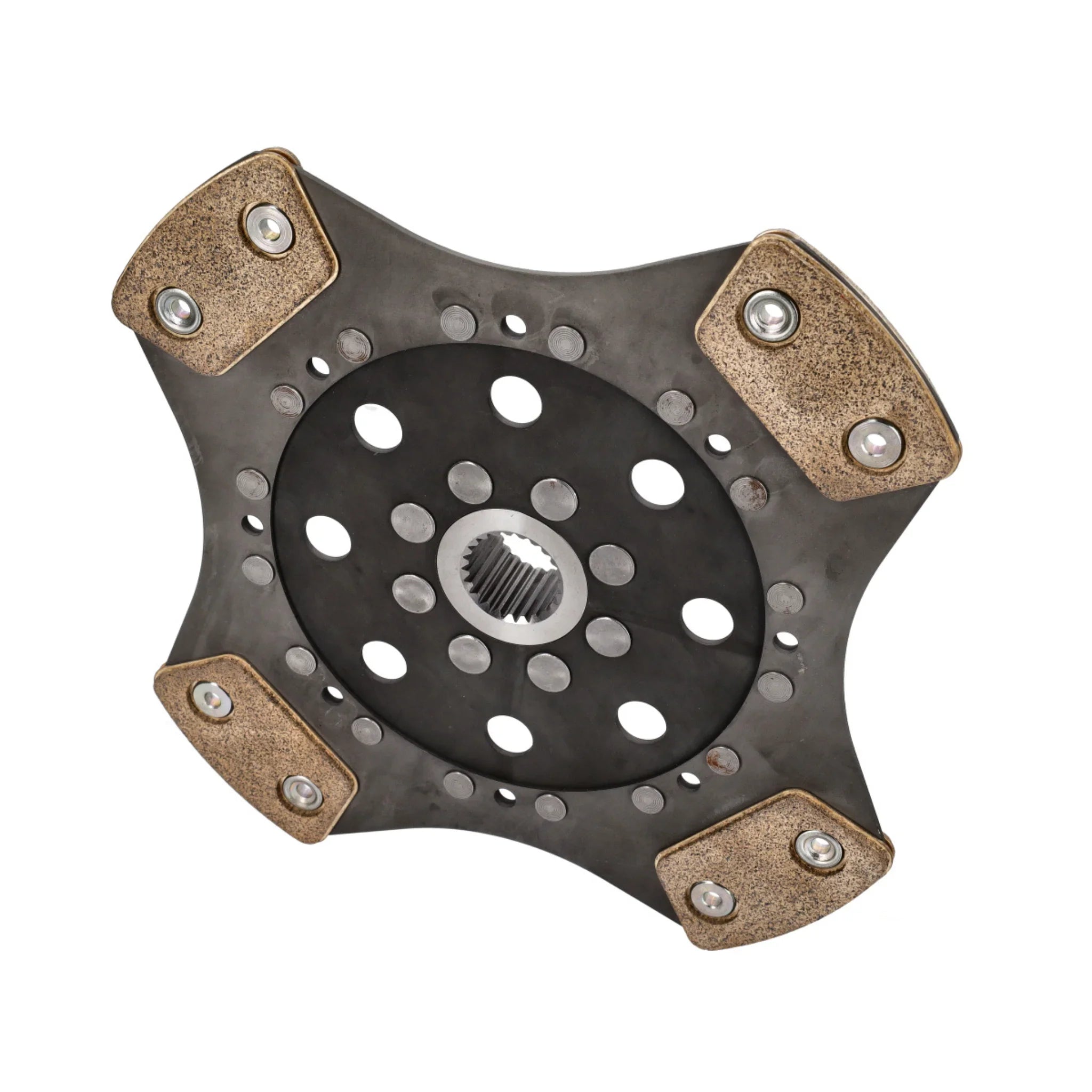

Clutch disc rigid (Sachs Performance) – Motorsport

Rigid paddle clutch disc from Sachs Performance with a diameter of 240 mm. Developed for maximum power transmission, high temperature resistance and aggressive load changes, ideal for high-performance road vehicles and motorsport applications.

Details at a glance

• Sachs Performance rigid paddle clutch disc
• Aggressive pull-away characteristics and direct power transmission
• Increased heat capacity & greatly increased load capacity
• Significantly higher torque reserve compared with OE clutches
• Robust motorsport design, high dirt resistance
• Ideal in combination with the Sachs Performance pressure plate
• Diameter: 240 mm
• Hub profile: 23.3 × 26.3 – 23N
• Number of splines: 23
• Parameter: 240S

Description

This rigid paddle clutch disc from Sachs Performance was developed specifically for applications that demand the highest load capacity, direct power transmission and extreme heat resistance. In contrast to the organic standard clutch, it offers an aggressive, motorsport-oriented character and allows a significantly higher transmittable torque.

Thanks to the paddle-shaped friction segments and the rigid design, the clutch responds instantly, without damping elements, which makes it ideal for vehicles with power increases, turbo conversions, track days or sporty road tuning. The high dirt resistance and thermal stability ensure consistent performance even under load.

Combined with a Sachs Performance pressure plate kit, the result is a system that works well above OE specification and was developed for demanding drivers who want uncompromising control and responsiveness.

Technical data

• Type: rigid paddle clutch disc
• Manufacturer: Sachs Performance
• Diameter: 240 mm
• Hub profile: 23.3 × 26.3 – 23N
• Number of splines: 23
• Parameter: 240S
• Version: racing / performance

Compatibility / Vehicle fitment

• Porsche 911 3.0 Turbo (01/1975–12/1977)
• Porsche 911 (964) 3.6 Carrera RS (06/1991–09/1993)
• Porsche 911 (993) Carrera RS Clubsport (from 1995)
• Porsche 911 (996) 3.6 GT3 (03/1999–08/2005)
• Porsche 911 (997) 3.6 GT3 (03/2006–12/2009)
• Porsche 944 2.5 Turbo (08/1985–07/1991)
• Porsche 968 3.0 (06/1991–11/1995)
• Porsche 968 3.0 Turbo S (03/1993–11/1995)

Scope of delivery

• 1 × rigid paddle clutch disc, Sachs Performance

Note

Recommended for vehicles with increased power. For optimal performance, use in combination with a Sachs Performance pressure plate.
