Oil Cooler Kit (Front) – Porsche 911 SC / 3.2 Carrera (1980–1989)

Complete oil cooler kit for Porsche 911 SC and 911 3.2 Carrera models, including all lines, brackets, and components.

• Complete oil cooler kit for front axle installation
• Includes long brass oil lines and front oil cooler
• Comprises all lines, brackets, bearings, and holders
• Diagram references No. 11, 11A, 12, 12A, 13A, 13B, 13C, 13D, 18, 20, 21, 22, 23, 25, 26, 27

Complete oil cooler kit suitable for Porsche 911 SC models from 1980 to 1983, and Porsche 911 3.2 Carrera models from 1984 to 1989. The set includes all necessary lines, pipes, brackets, rubber mounts, and fittings for the installation of the front oil cooler. The components are shown in the corresponding parts diagram under numerous reference numbers (11 to 27) and cover all necessary assemblies.

Compatibility

• Porsche 911 SC – 1980 to 1983
• Porsche 911 3.2 Carrera – 1984 to 1989

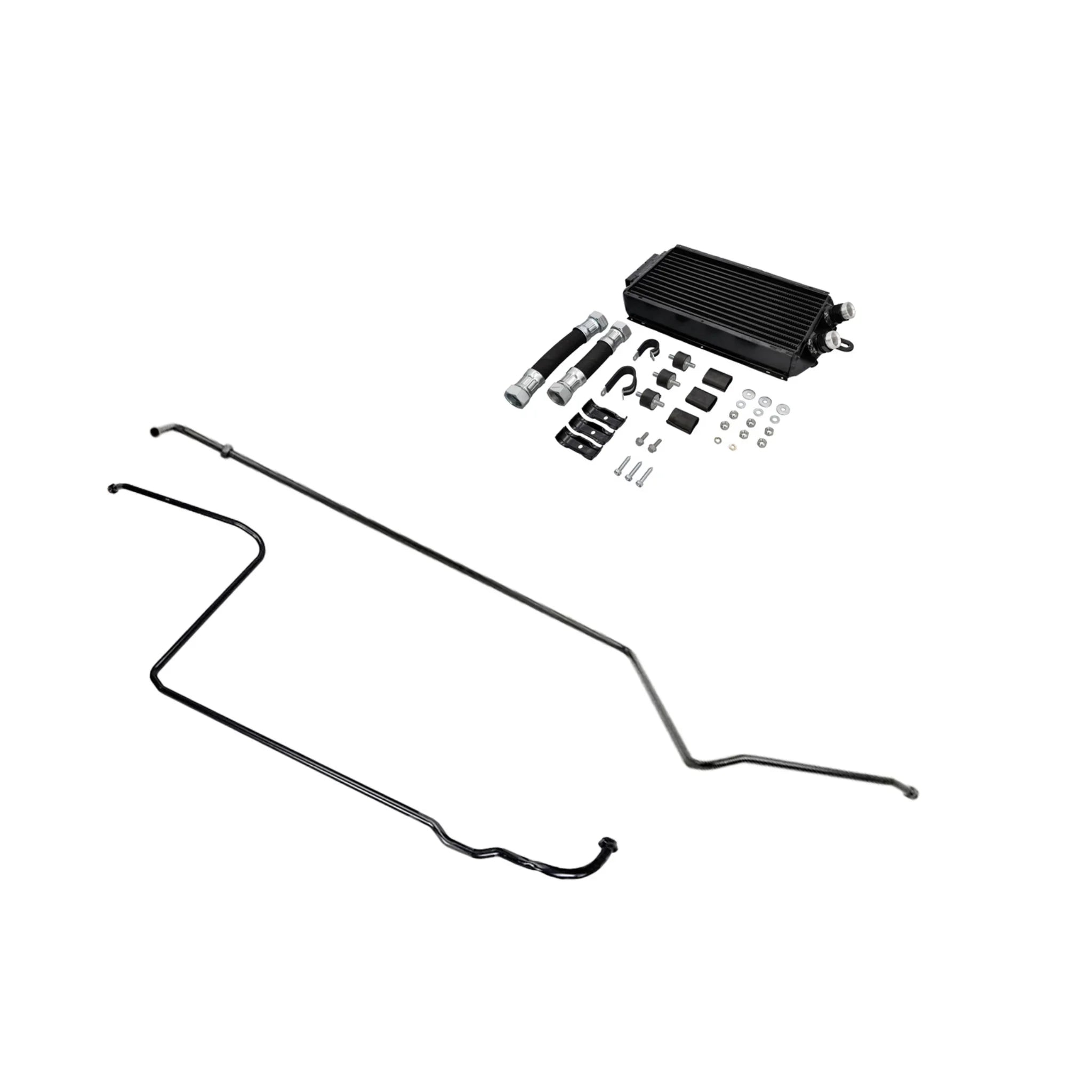

Scope of Delivery

• Long brass oil return line
• Oil pipe to front cooler
• Long brass inlet oil pipe
• Further oil pipe to front cooler
• Front oil cooler
• Rubber mounts for oil cooler – 3 pieces
• Washers for front bumper – 3 pieces
• Lock nuts for cooler mounting – 6 pieces
• Oil pipe fastening hoses – 3 pieces
• Further lock nuts – 2 pieces
• Brackets for long oil lines – 3 pieces
• Washers for retaining screw – 3 pieces
• Sheet metal screws – 3 pieces
• Oil pipe support clamp
• Further oil pipe support clamp
• M6 × 20 hex screws – 2 pieces

Note

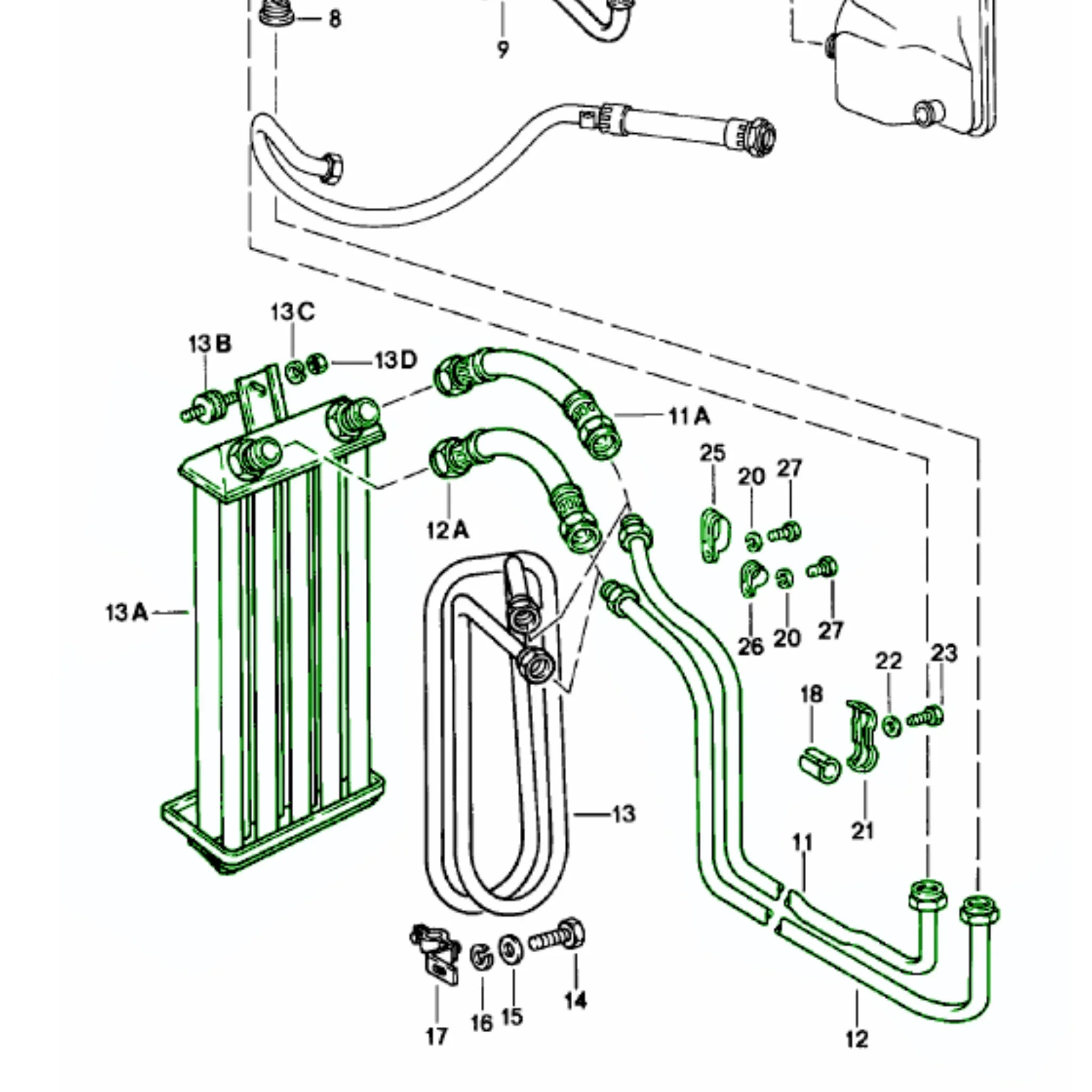

Click "Enlarge" to view the large parts diagram. Diagram references: 11, 11A, 12, 12A, 13A–13D, 18, 20–23, 25–27.
