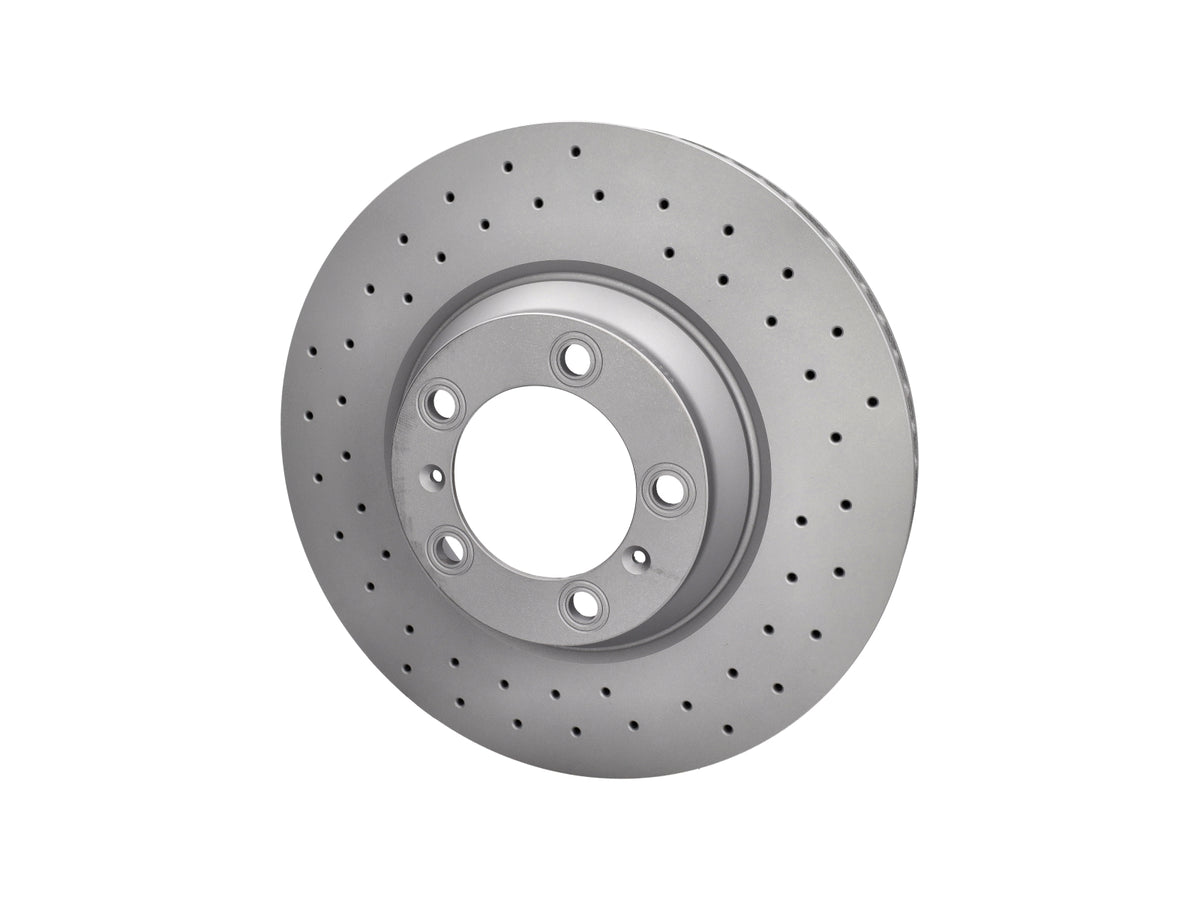

Zimmermann Sport Brake Disc, Front, Drilled, 350 mm | Porsche Cayenne 9YA (from 2018)

Zimmermann Sport Coat Z brake disc for the front axle of the Porsche Cayenne 9YA. The internally ventilated, drilled disc is designed as an upgrade for better cooling and braking performance; Zimmermann developed it on the basis of motorsport experience with standard brake discs. It replaces the original disc 1:1, no additional modifications are required.

Technical data

• Manufacturer: Zimmermann, Sport Coat Z product line
• Installation position: front axle
• Design: internally ventilated, drilled, coated
• Outer diameter: 350 mm
• Disc thickness: 34 mm
• Bolt circle diameter: 130 mm
• Centring diameter: 98 mm
• Weight: 12.2 kg
• Number of holes: 7/5
• Coat Z corrosion protection for a better surface finish, especially on the hub and outer diameter
• Drilling for better wet braking performance by constantly removing brake dust and water
• The countersinks of the holes also serve as a wear indicator
• 1:1 replacement for the original disc, no additional modifications required

Scope of delivery

• 1 × brake disc, front (left or right, depending on selection)

Fits

• Porsche Cayenne 9YA 3.0 V6 (2018–2023) and Cayenne Coupé 3.0 V6 (2019–2023): 18-inch front brake system, brake calipers painted black (option code 1ZG)
• Porsche Cayenne 9YA E-Hybrid (2018–2023) and Cayenne Coupé E-Hybrid (2020–2023): 18-inch front brake system, brake calipers painted green (option code 1ZH)

Porsche reference numbers: 971615301, 971615302, 9Y0615301, 9Y0615302, 9Y0615301X, 9Y0615302X

Approval: No registration required. The general operating permit (ABE) is supplied with the brake disc.

If you have any questions, we are happy to help.
