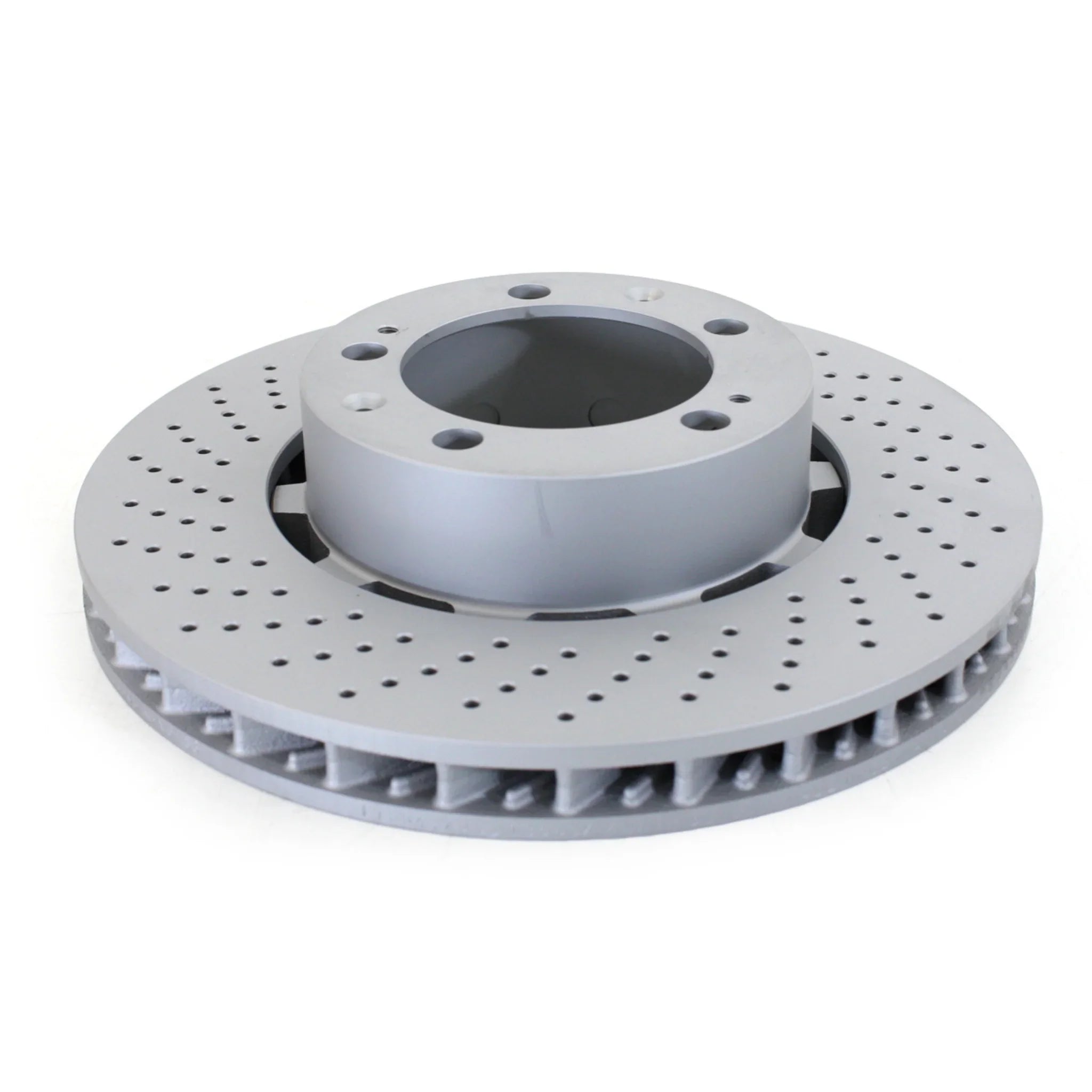

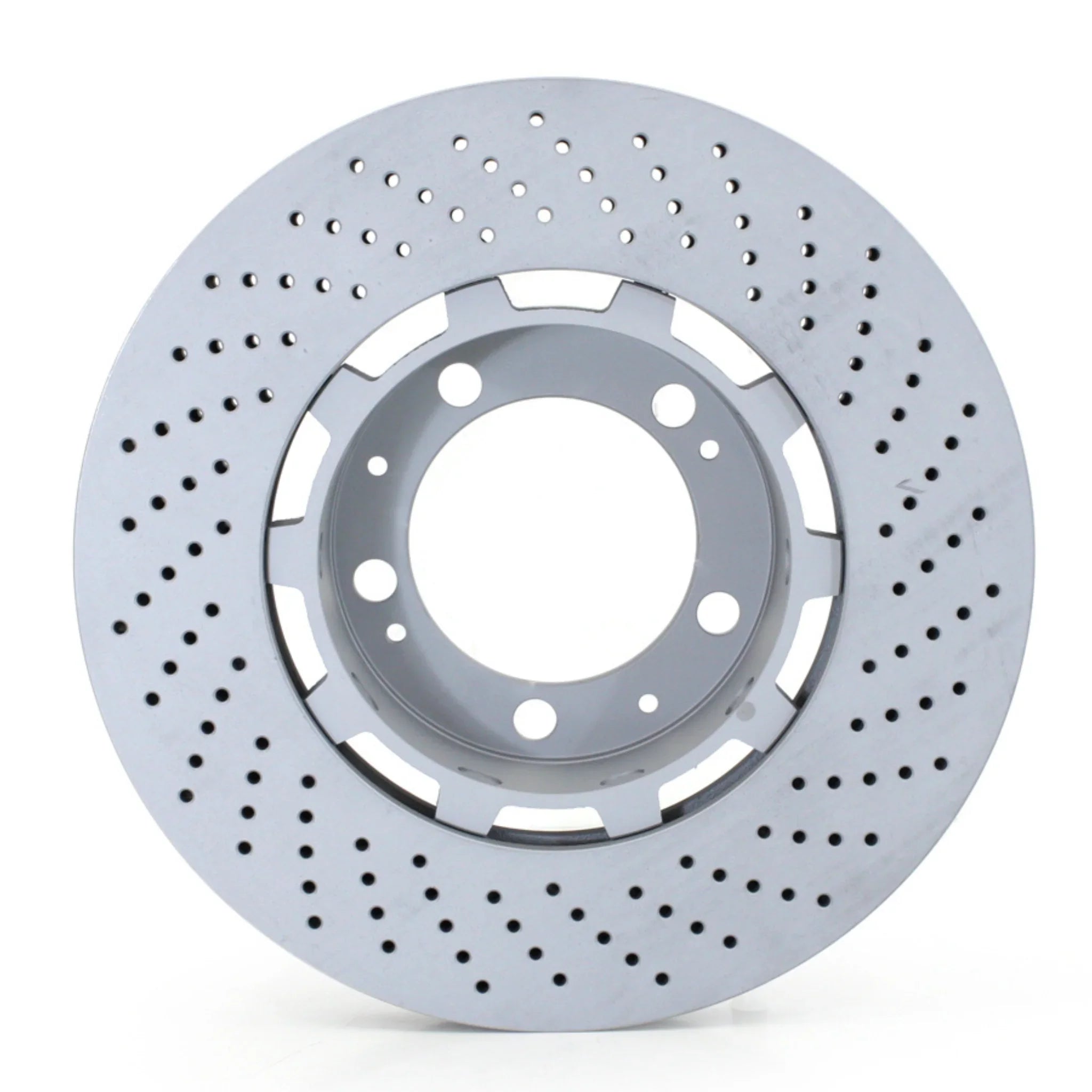

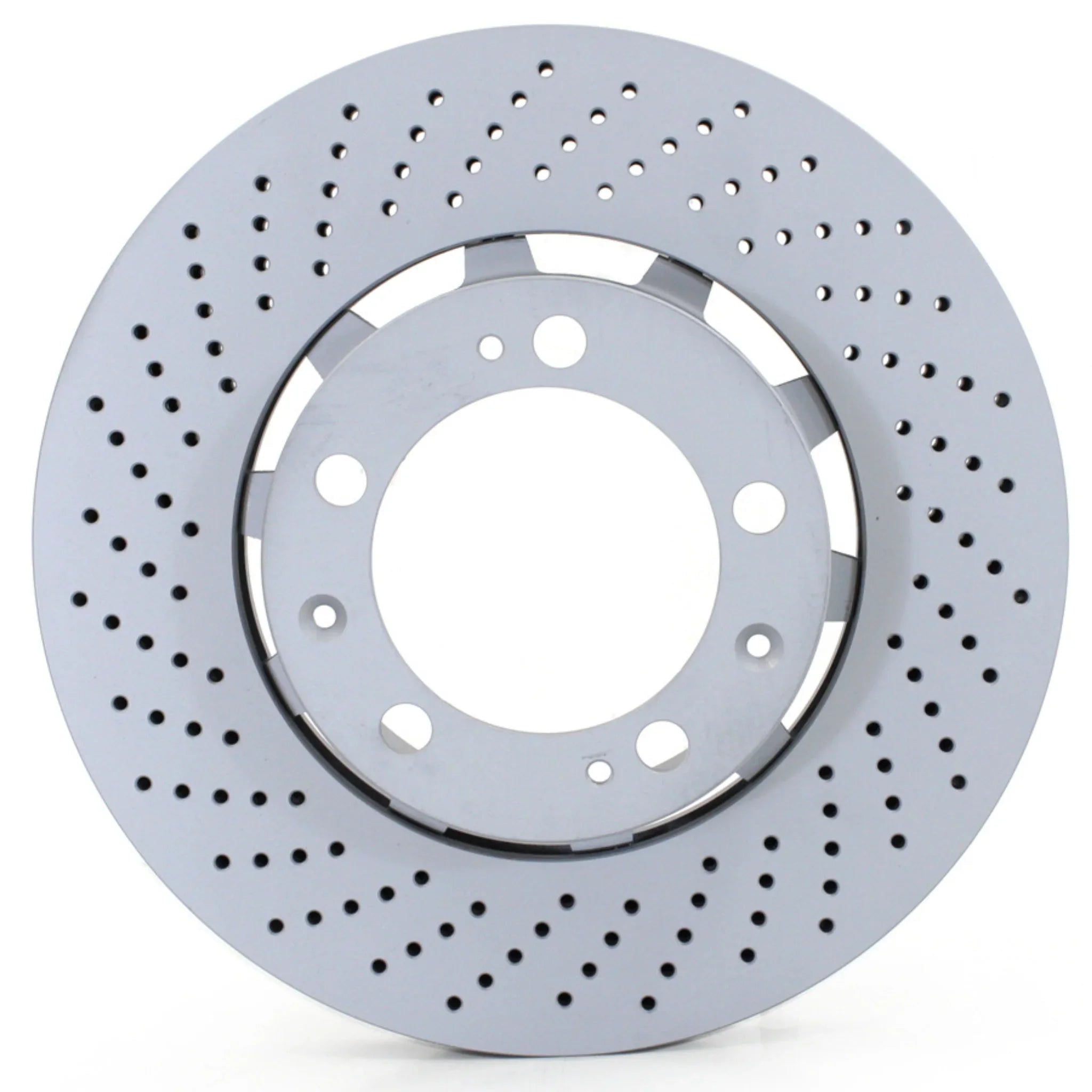

Zimmermann Sport Brake Disc "Formula Z" (drilled) – Porsche 993 Turbo / C2S / C4S (front)

Front Zimmermann Formula-Z brake disc for Porsche 993 C2S, C4S, and Turbo. Two-piece, floating, drilled, and ventilated.

Details at a glance

• Zimmermann FORMULA Z brake disc
• Front, two-piece, and floating
• Ventilated and drilled
• Outer diameter: 322 mm
• Thickness: 32 mm
• Bolt circle Ø: 130 mm
• Centering diameter: 103 mm
• Suitable for 993 C2S / C4S / Turbo

Description

The Zimmermann FORMULA Z brake disc for the front axle combines a two-piece, floating design with a drilled and ventilated friction ring. This version was developed for the high-performance variants of the Porsche 993 – including C2S, C4S, and Turbo.

With an outer diameter of 322 mm and a thickness of 32 mm, the disc meets the corresponding specifications of these models. The coated surface also ensures a clean and corrosion-protected appearance.

Technical data

• Manufacturer: Zimmermann
• Version: FORMULA Z
• Position: Front axle
• Outer diameter: 322 mm
• Thickness: 32 mm
• Bolt circle Ø: 130 mm
• Centering diameter: 103 mm
• Ventilated and drilled
• Two-piece, floating

Compatibility / Vehicle assignment

• Porsche 993 C2S – front (1994–1997)
• Porsche 993 C4S – front (1994–1997)
• Porsche 993 Turbo – front (1994–1996)

Scope of delivery

• 1× Zimmermann FORMULA Z front brake disc

Note

Always replace brake discs in pairs and install new brake pads. After installation, bleed the brake fluid system and carefully bed in the new discs to achieve optimal braking performance.
