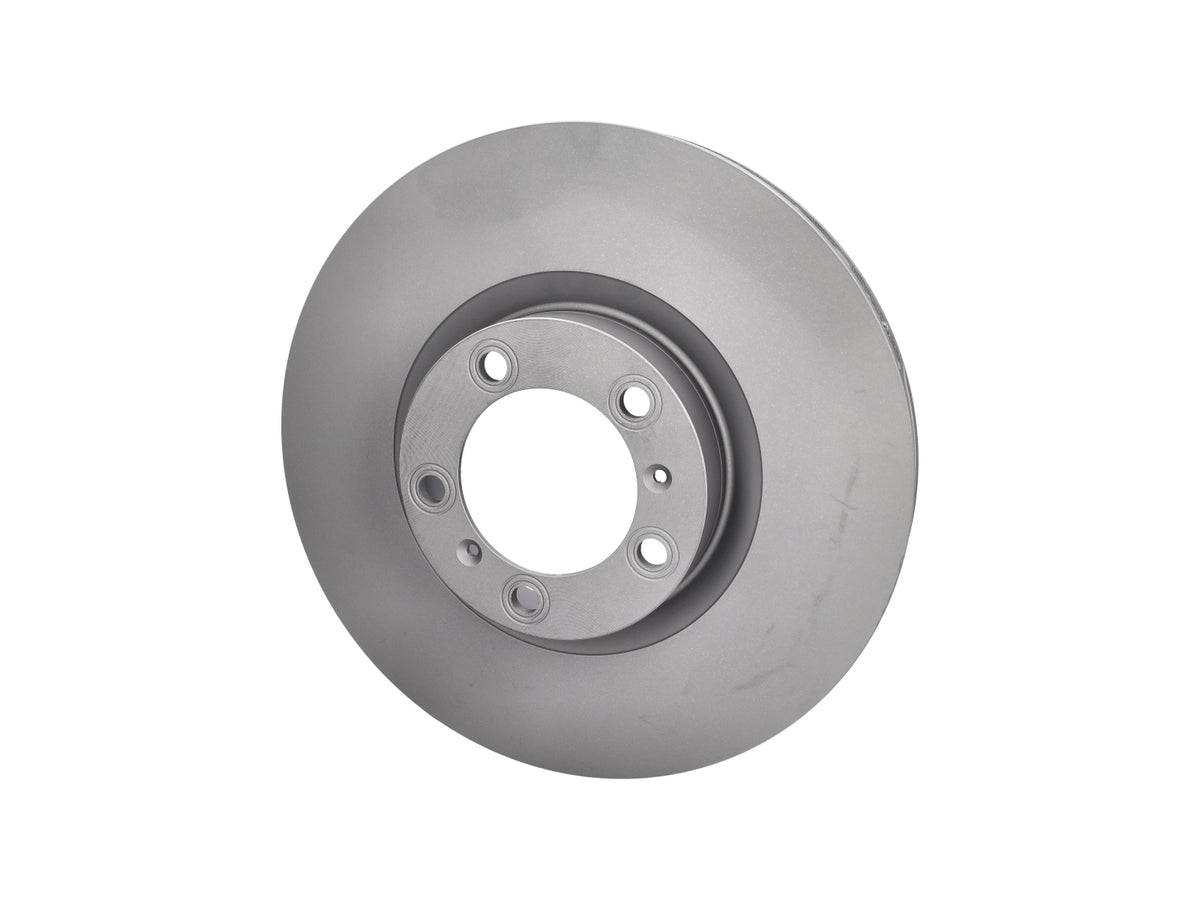

Zimmermann Brake Disc, Front, 360 mm, Coat Z | Porsche Taycan 9J1 / Cayenne 9YA (from 2018)

Zimmermann brake disc from the standard wear parts range with Coat Z corrosion protection for the front axle of the Porsche Taycan 9J1 and Cayenne 9YA. The internally ventilated disc measures 360 x 36 mm. All brake discs in the Zimmermann standard range are manufactured to the dimensions and material qualities specified by the vehicle manufacturer and are regarded as equivalent replacement parts within the meaning of the Motor Vehicle Block Exemption Regulation (EU) 330/2010.

Technical data

• Manufacturer: Zimmermann, standard brake disc with Coat Z corrosion protection
• Installation position: front axle
• Design: internally ventilated, coated
• Outer diameter: 360 mm
• Disc thickness: 36 mm
• Bolt circle diameter: 130 mm
• Centring diameter: 98 mm
• Weight: 13.3 kg
• Number of holes: 7/5

Scope of delivery

• 1 × brake disc, front (left or right, depending on selection)

Fits

• Porsche Taycan 9J1.1 (2020–2024) and 9J1.2 (from 2024), saloon, Sport Turismo and Cross Turismo, with sport equipment (option code A8F): front brake discs for 18-inch wheels, red brake calipers, option code 1LR or 1LS (front disc brakes with integrated backing plate)
• Porsche Taycan 9J1.1 (2020–2024) and 9J1.2 (from 2024), saloon, Sport Turismo and Cross Turismo, with comfort equipment (option code A8C): front brake discs for 17-inch wheels, black brake calipers, option code 1LS (front disc brakes with integrated backing plate)
• Porsche Cayenne 9YA 3.0 V6, S 2.9 V6 and E-Hybrid (2018–2023) as well as the corresponding Cayenne Coupé models (from 2019): with option code 1ZB (18-inch front disc brake, brake calipers painted green, North America), 1ZJ (18-inch, brake calipers painted green), 1ZR (18-inch, brake calipers painted black, other markets) or 1ZS (18-inch, brake calipers painted black, North America)

Porsche reference numbers: 9J1615301A, 9J1615302A, 9Y0615301A, 9Y0615302A

If you have any questions, we are happy to help.
