Zimmermann Brake Disc, Front, 350 mm, Coat Z | Porsche Cayenne 9YA / Panamera 971 (from 2017)

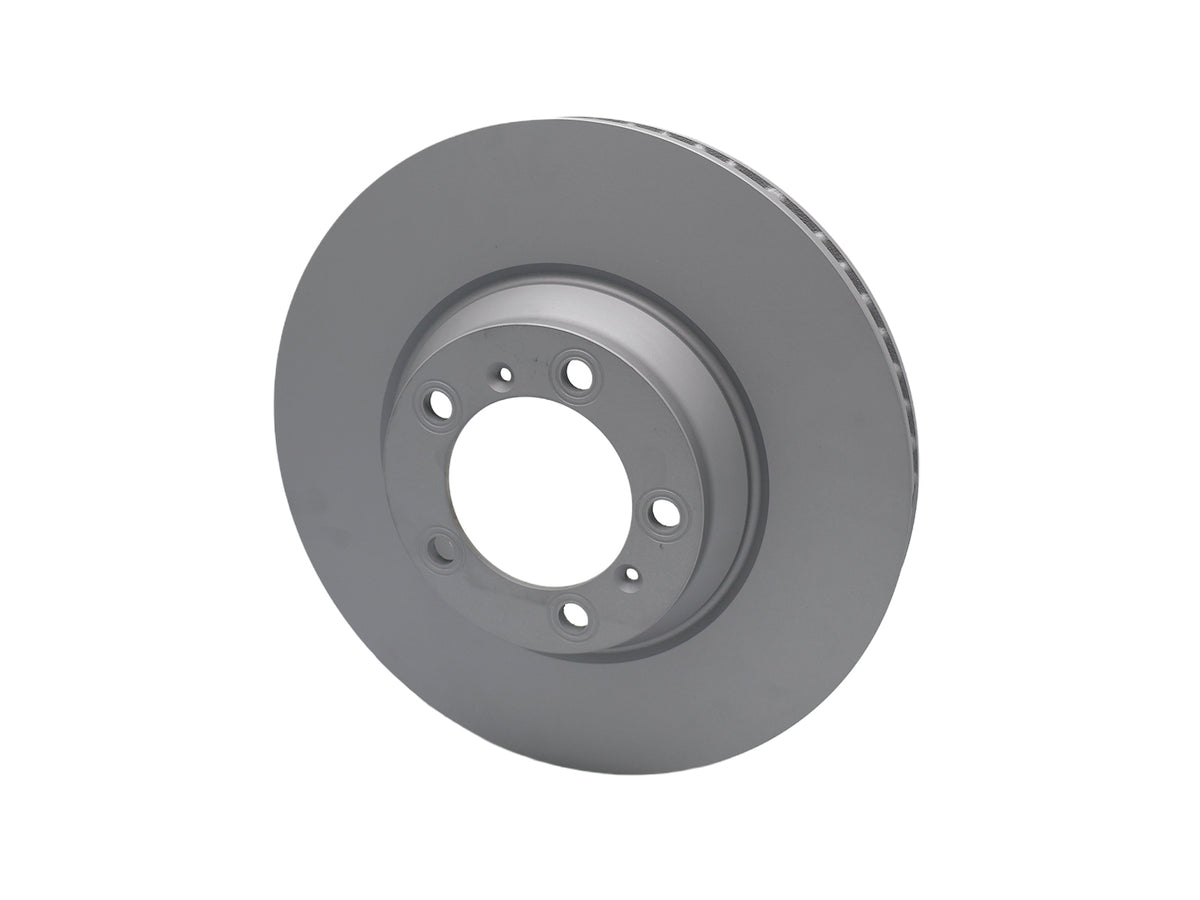

Zimmermann brake disc from the standard wear parts range with Coat Z corrosion protection for the front axle of the Porsche Cayenne 9YA and Panamera 971. The internally ventilated disc measures 350 x 34 mm. All brake discs in the Zimmermann standard range are manufactured to the dimensions and material qualities specified by the vehicle manufacturer and are regarded as equivalent replacement parts within the meaning of the Motor Vehicle Block Exemption Regulation (EU) 330/2010.

Technical data

• Manufacturer: Zimmermann, standard brake disc with Coat Z corrosion protection
• Installation position: front axle
• Design: internally ventilated, coated
• Outer diameter: 350 mm
• Disc thickness: 34 mm
• Bolt circle diameter: 130 mm
• Centring diameter: 98 mm
• Weight: 11.9 kg
• Number of holes: 7/5

Scope of delivery

• 1 × brake disc, front (left or right, depending on selection)

Fits

• Porsche Cayenne 9YA 3.0 V6 (2018–2023) and Cayenne Coupé 3.0 V6 (2019–2023): 18-inch front brake system, brake calipers painted black (option code 1ZG)
• Porsche Cayenne 9YA E-Hybrid (2018–2023) and Cayenne Coupé E-Hybrid (2020–2023): 18-inch front brake system, brake calipers painted green (option code 1ZH)
• Porsche Panamera 971.1 (2017–2020) with 18-inch brake system, brake calipers painted black (option code 1LN): Panamera 3.0 V6; Panamera 4, 4S and 4 E-Hybrid, each also Executive and Sport Turismo; 4S Diesel 4.0 V8, also Sport Turismo (2017–2018)
• Porsche Panamera 971.2 (2021–2023) with "Standard" equipment (option code 0J2), load group 1 front axle / 1 rear axle (option code A8C): Panamera 2.9 V6; Panamera 4, 4S, 4 E-Hybrid, 4S E-Hybrid and GTS, each also Sport Turismo

Porsche reference numbers: 971615301, 9Y0615301, 971615302, 9Y0615302

Approval: Tested to ECE R90.

If you have any questions, we are happy to help.
