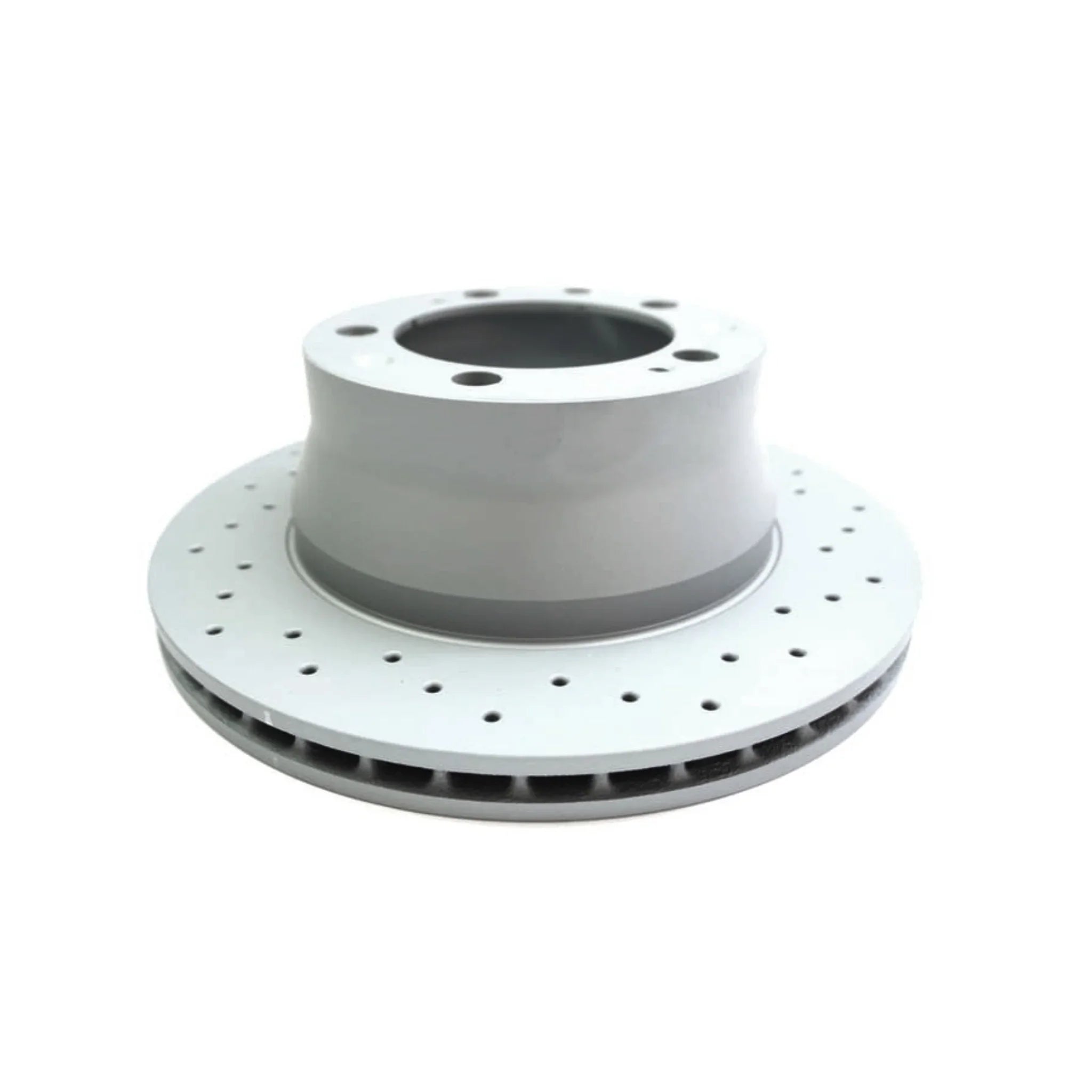

Zimmermann Rear Brake Disc (Drilled) – Porsche 964

Cross-drilled Zimmermann SPORT brake disc COAT Z for the rear axle. Internally vented, corrosion-protected, and designed for optimized braking performance. Sold per piece, not side-specific.

Details at a glance

• Zimmermann SPORT brake disc – COAT Z
• Internally vented, cross-drilled, coated
• Optimized cooling and braking behavior
• Not side-specific – can be installed on left or right
• Sold per piece

Description

The Zimmermann SPORT brake disc COAT Z for the rear axle was developed based on motorsport-proven technologies and offers a noticeable upgrade over standard brake discs. The combination of internal ventilation, high-quality cast material, and a cross-drilled braking surface improves thermal resilience, reduces brake fade, and increases overall deceleration performance.

The special COAT Z corrosion protection finish reliably protects the disc – especially the hub and outer area – from rust and contributes to a clean look in the wheel arch. The disc is not side-specific and can be mounted on either side.

Technical data

• Outer diameter: 299 mm
• Brake disc thickness: 24 mm
• Bolt circle diameter: 130 mm
• Centering diameter: 103 mm
• Weight: 7.1 kg
• Number of holes / quantity: 10 / 5
• Design: internally vented, cross-drilled, COAT Z coated

Compatibility / Vehicle assignment

• Porsche 911 (964) 3.6L – 1990 to 1994 (Rear)
• Porsche 944 S2 – 1986 to 1991 (Rear axle)
• Porsche 944 Turbo – 1987 to 1991 (Rear)
• Porsche 944 Turbo S – 1987 to 1991 (Rear)
• Porsche 968 – 1992 to 1995 (Rear, not for M030)

Scope of delivery

• 1× Zimmermann SPORT brake disc COAT Z – rear, cross-drilled

Note

The brake disc is not side-specific and can be installed on the left or right. Sold per piece.
