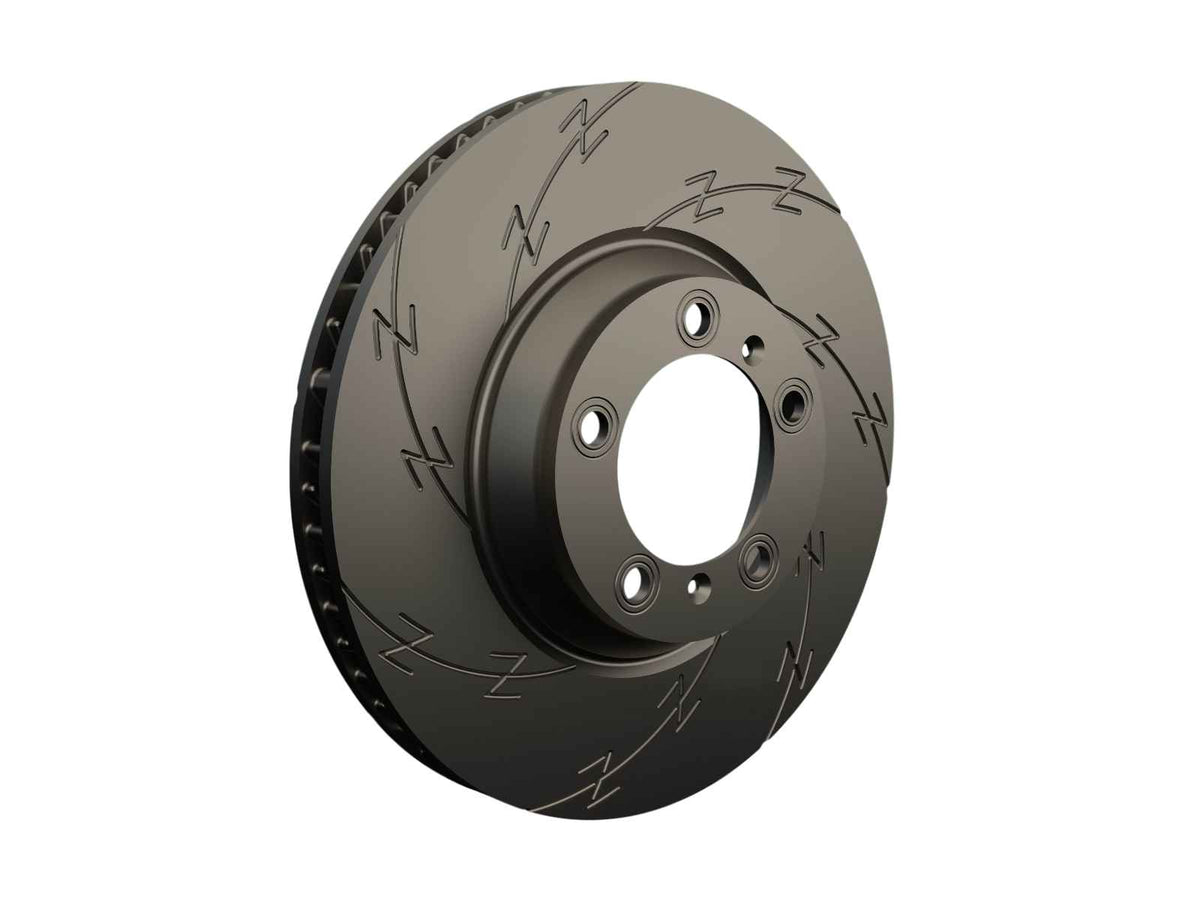

Zimmermann Black Z Brake Disc, Rear, 358 mm | Porsche Cayenne 955/958 Turbo (2006–2017)

Zimmermann Black Z brake disc with a diameter of 358 mm for the rear axle of the Porsche Cayenne 955 Turbo S and the 958 Turbo and Turbo S. The disc combines know-how from series production with insights from motorsport (VLN) and is the slotted alternative to the drilled Sport Z disc. The utility-model-protected groove pattern improves water and heat dissipation as well as wet braking behaviour and constantly re-sharpens the pads; the Coat Z+ coating protects against corrosion.

Technical data

• Manufacturer: Zimmermann, Black Z
• Design: internally ventilated, slotted (groove pattern protected by utility model)
• Surface: coated, Coat Z+ corrosion protection
• Outer diameter: 358 mm
• Disc thickness: 28 mm
• Pitch circle: 130 mm
• Centring diameter: 98 mm
• Inner diameter: 210 mm
• Weight: 10 kg
• Mounting location: rear axle, left or right
• 1:1 replacement of the original disc possible

Scope of delivery

• 1 × brake disc, rear

Fits

• Porsche Cayenne 955 Turbo S 4.5 V8 (from 2006)
• Porsche Cayenne 958 Turbo 4.8 V8, 500 hp (2010–2017)
• Porsche Cayenne 958 Turbo S 4.8 V8, 550 hp (2010–2017)
• Only for vehicles with the 18-inch brake system and red brake calipers (option code I1KP or I1KU)

Porsche reference numbers: 958 352 401 50, 958 352 402 50, 955 352 401 50, 955 352 401 51

Approval: ECE R90 approved. Approved for both road and racetrack use.

Note: The price applies per brake disc (1 piece). According to the manufacturer, the brake disc is not side-specific and fits both left and right.

If you have any questions, we are happy to help.
