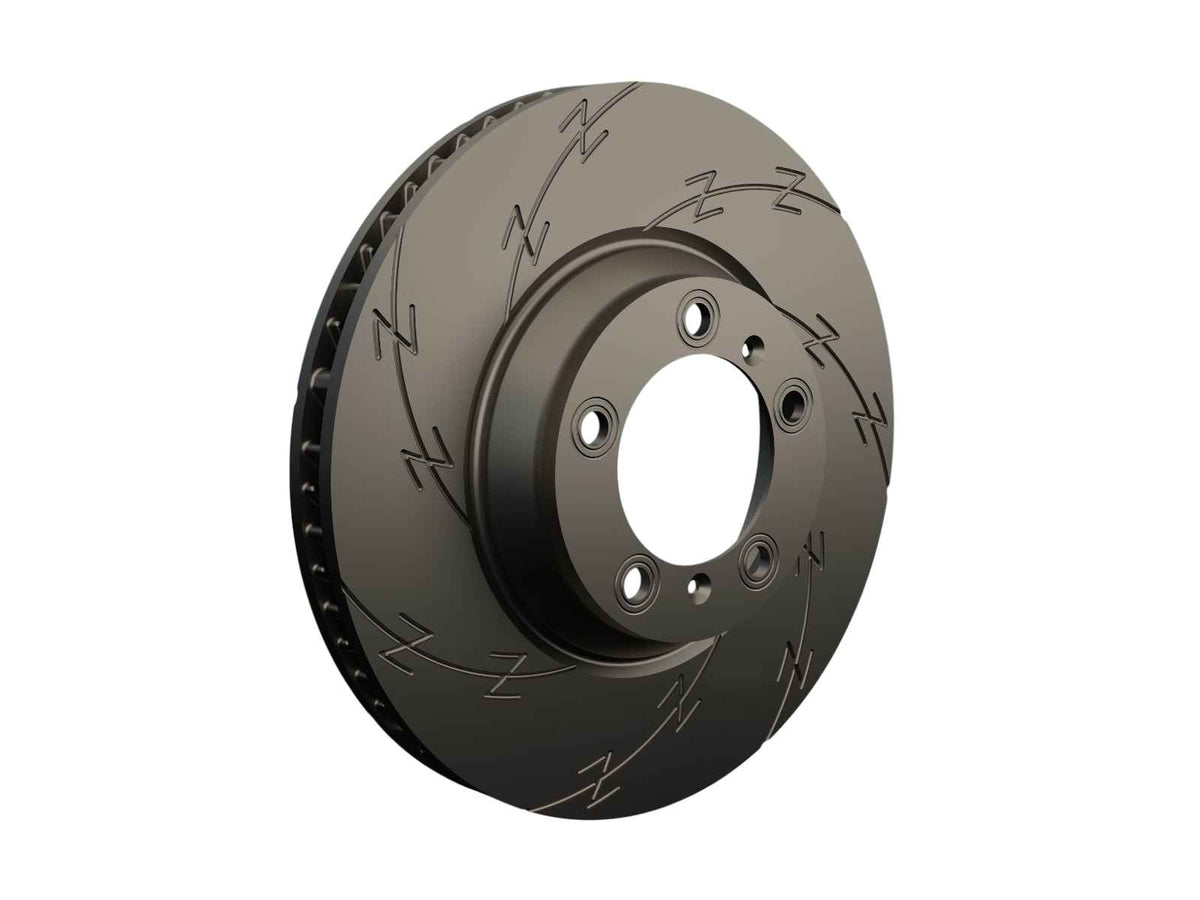

Zimmermann Black Z Brake Disc, Rear, 330 mm | Porsche Cayenne 9YA S (2018–2023)

Zimmermann Black Z brake disc for the rear axle of the Porsche Cayenne S and Cayenne Coupé S (9YA) with the 18-inch rear brake system and silver brake calipers, individually for the left or right side. The disc combines know-how from series production with insights from motorsport (VLN) and is the slotted alternative to the drilled Sport Z disc. The groove pattern, protected by utility model, improves water and heat dissipation as well as wet braking behaviour and constantly resharpens the pads; the Coat Z+ coating protects against corrosion.

Technical data

• Manufacturer: Zimmermann, Black Z
• Design: internally ventilated, slotted (groove pattern protected by utility model)
• Surface: coated, Coat Z+ corrosion protection
• Outer diameter: 330 mm
• Disc thickness: 28 mm
• Pitch circle: 130 mm
• Centring diameter: 98 mm
• Inner diameter: 210 mm
• Weight: 8.4 kg
• 1:1 replacement of the original disc possible

Scope of delivery

• 1 × brake disc, rear, left or right (depending on selection)

Fits

• Porsche Cayenne S 2.9 V6, 440 hp (9YA, 2018–2023)
• Porsche Cayenne Coupé S 2.9 V6, 440 hp (9YA, 2019–2023)
• Only for vehicles with the 18-inch rear brake system and silver-painted brake calipers (option code 1KX)
• Not for vehicles with PCCB or PSCB brake systems

Porsche reference numbers: 9Y0615601AB, 9Y0615602AB, 9Y0615601A, 9Y0615602A

Approval: ECE R90 approved. Approved for both road and race track use.

If you have any questions, we are happy to help.
