Front floor with towing hook – Porsche 911 F (63-73)

Front floor section with suspension mounts & tow hook – Porsche 911 (01/1963–07/1973)

Reinforced front floor section with suspension mounts and integrated 8 mm tow hook. New, optimized version for Porsche 911 models from 01/1963 to 07/1973.

Details at a glance

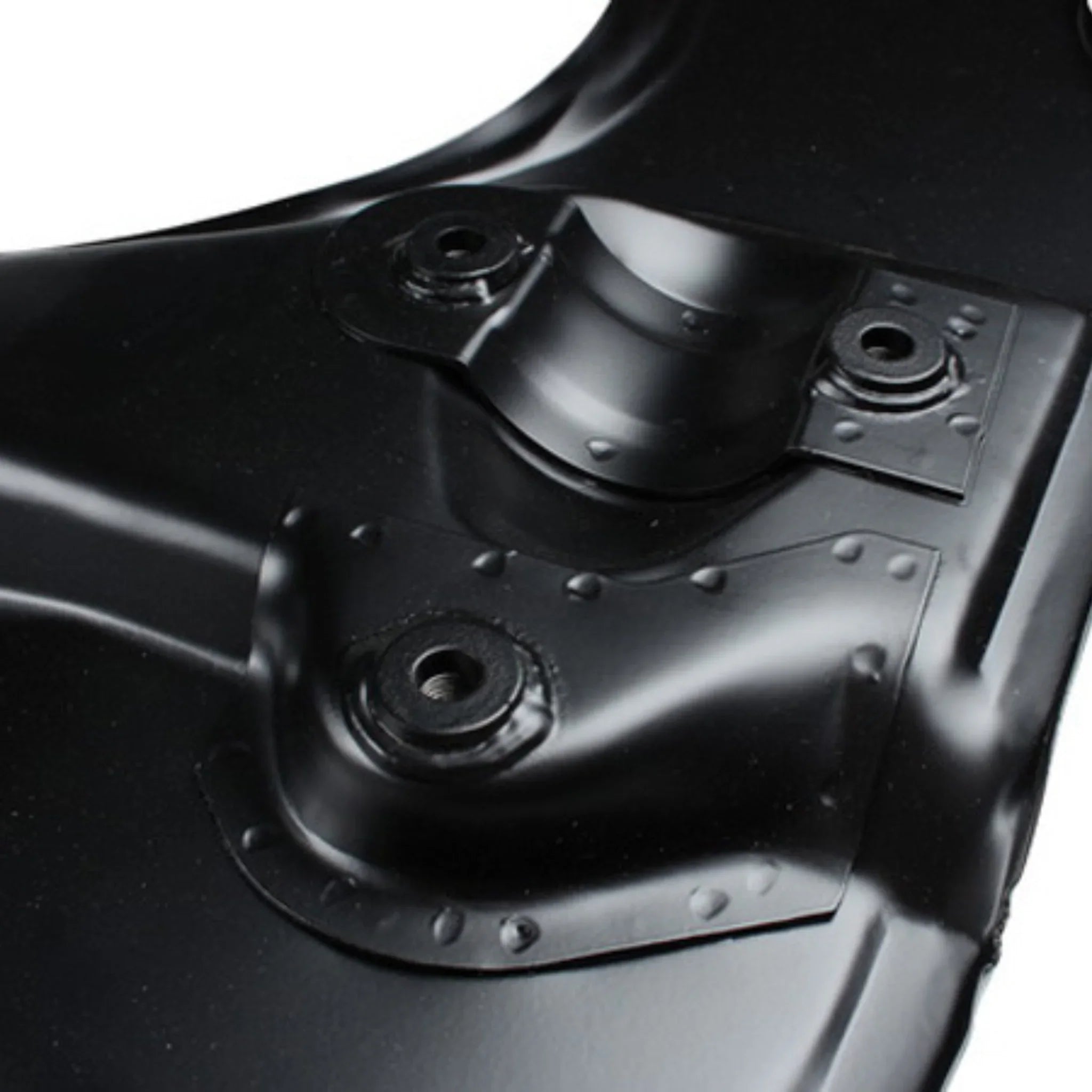

• Front floor section with integrated suspension brackets
• New design with 2 mm thick suspension reinforcement
• 8 mm thick tow hook

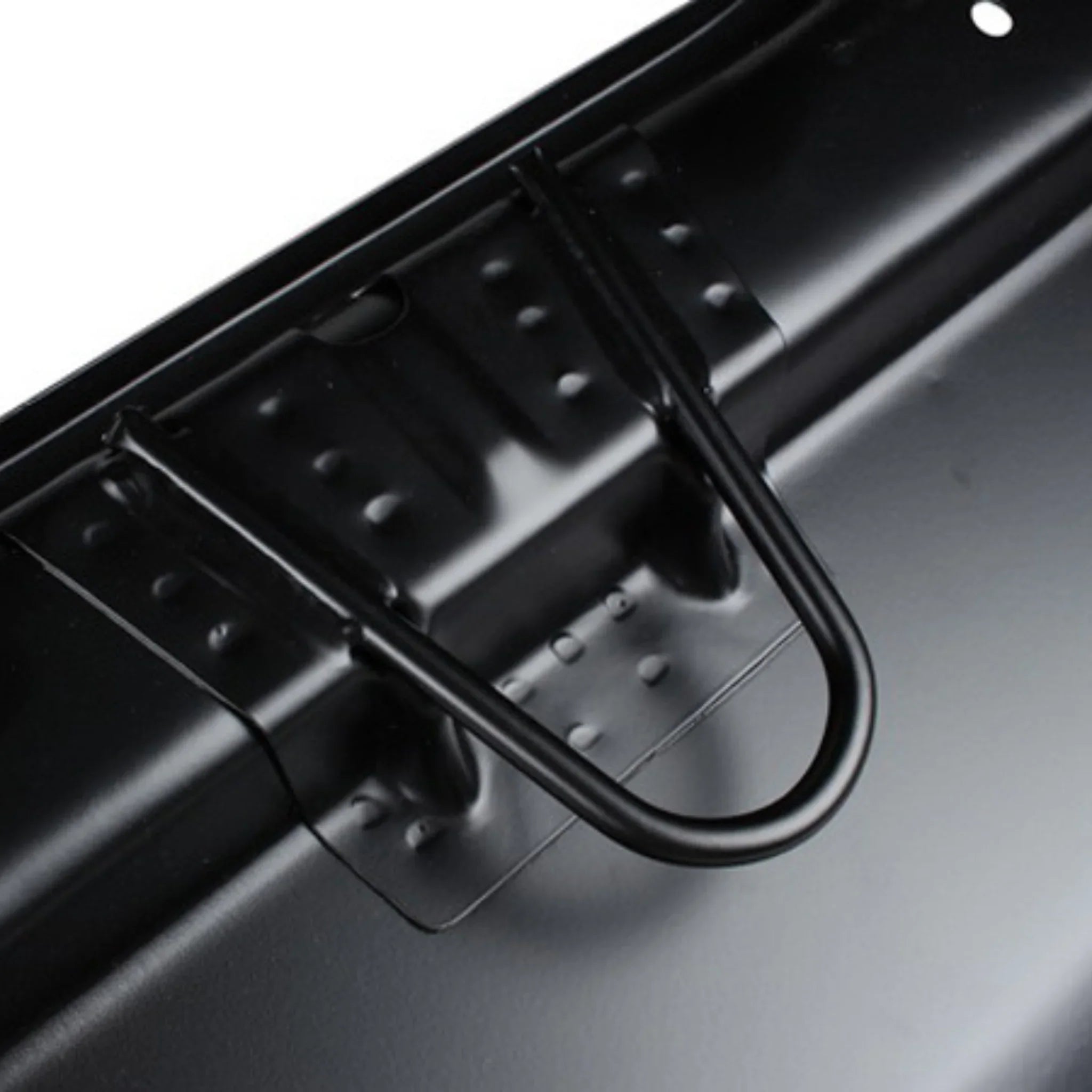

• Towing hook welded into a 1.25 mm reinforcement plate
• All reinforcements are spot-welded to factory specifications.
• Ideal for complete restorations and structural repairs
• Diagram reference: No. 2

Description

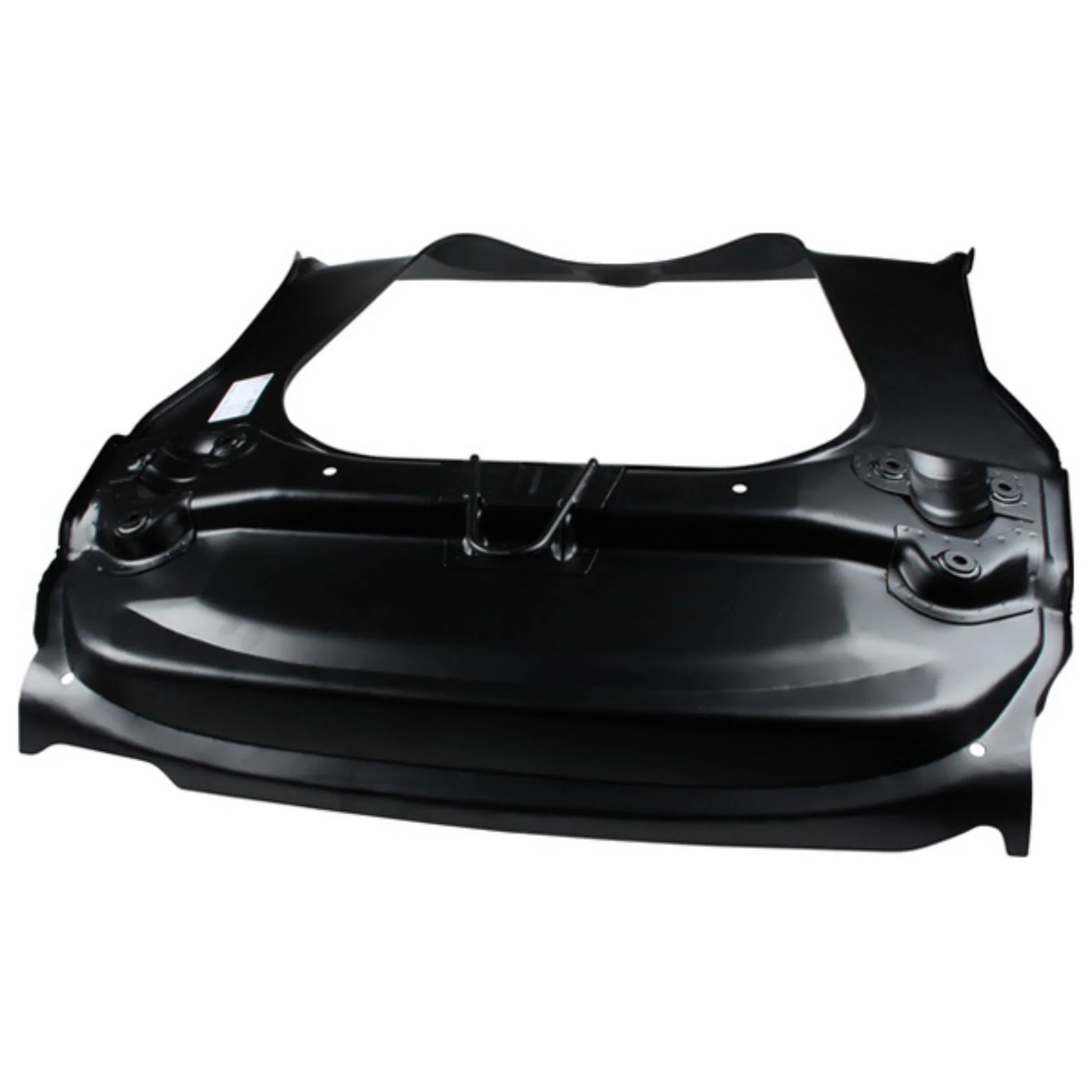

This reinforced front floor section replaces the entire front floor, including suspension mounts, on early Porsche 911 models (1963–1973). The component has been technically redesigned and offers significantly greater structural stability than the original version.

The suspension reinforcement consists of 2 mm thick steel , precisely spot-welded to the base plate. The 8 mm thick tow hook is firmly welded into a 1.25 mm thick reinforcement plate and also correctly connected to the base structure to safely absorb high tensile and load forces.

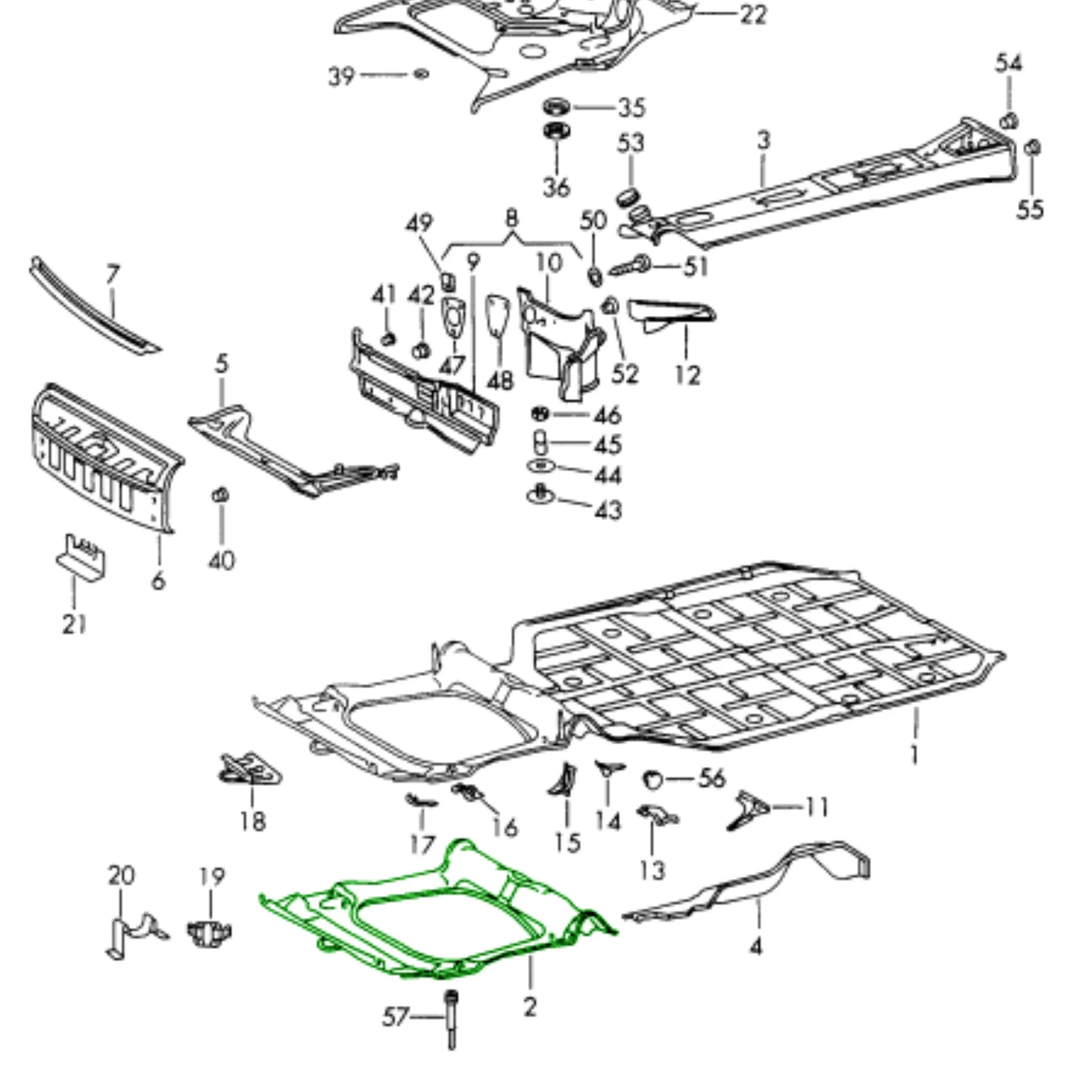

This component is ideally suited for high-quality restorations, especially when the front end is severely affected by corrosion or accident damage. Its location in the parts diagram is indicated by diagram reference number 2 .

Technical data

• Component type: Front floor section including suspension brackets
• Suspension reinforcement: 2 mm steel
• Tow hook: 8 mm steel
• Reinforcement plate: 1.25 mm steel
• Diagram reference: No. 2

Compatibility / Vehicle Assignment

• Porsche 911 – 01/1963 to 07/1973

Scope of delivery

• 1× Front floor section with suspension brackets & tow hook

Notice

Installation requires precise alignment and welding work on load-bearing structures. We recommend installation by a specialized body shop followed by thorough sealing of the front end.
