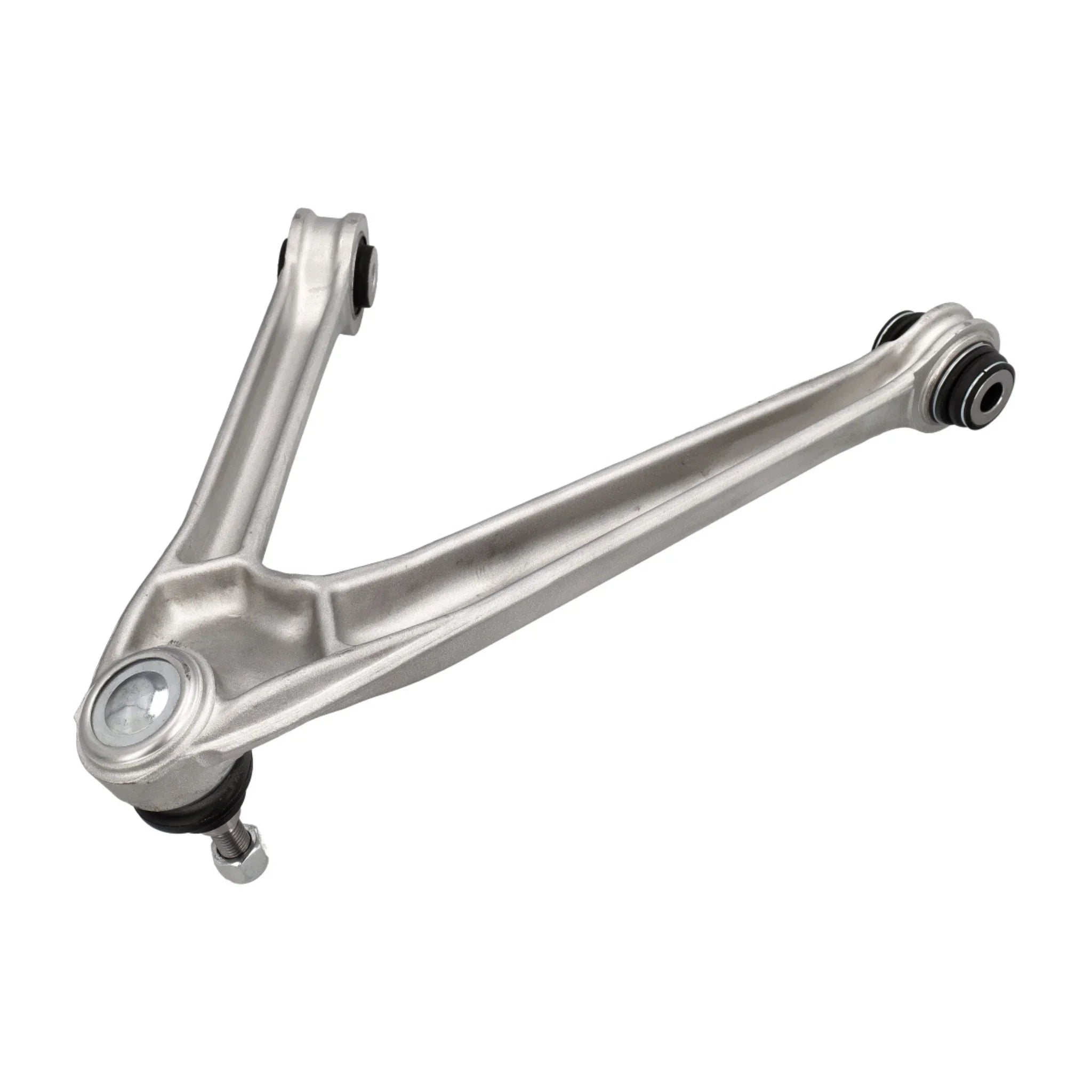

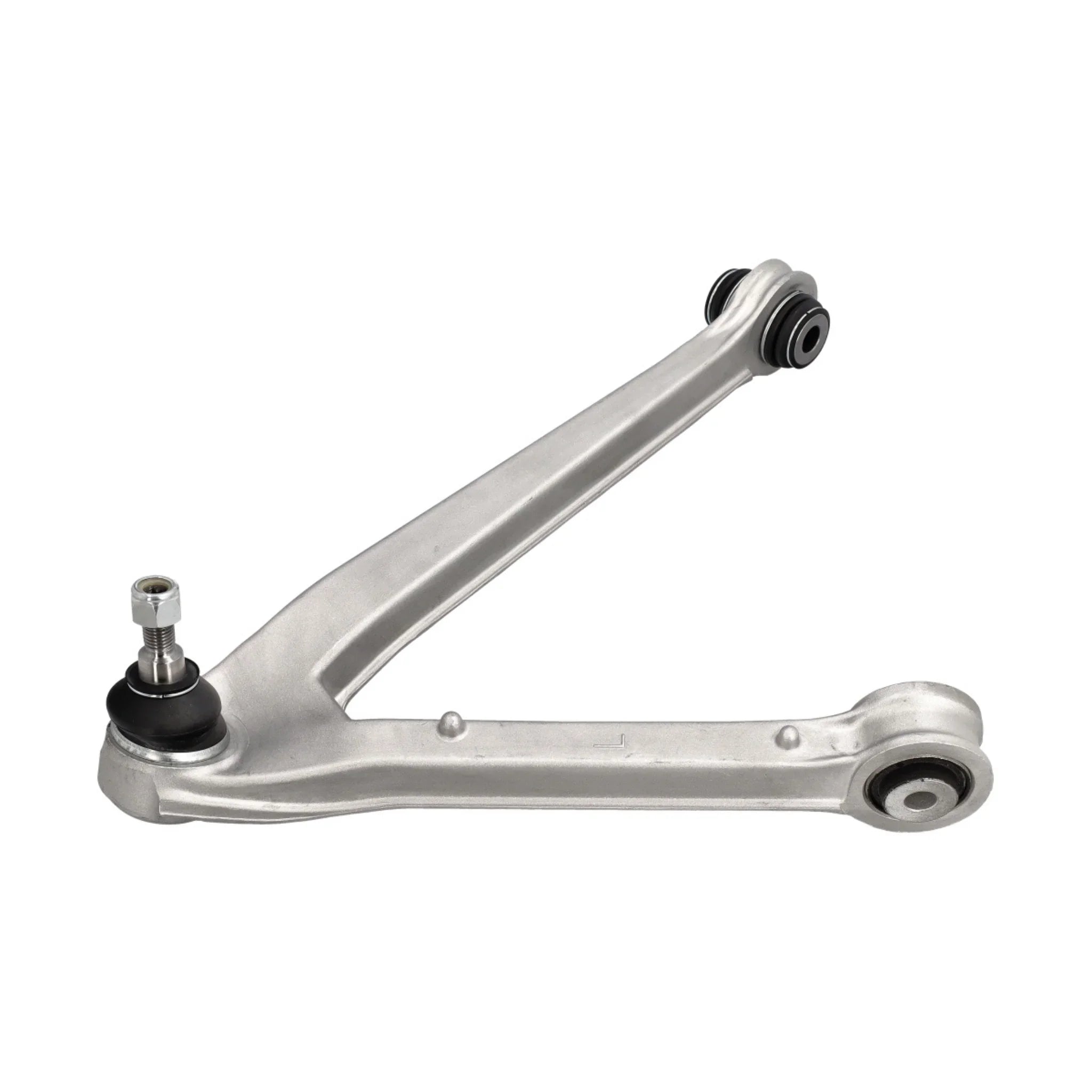

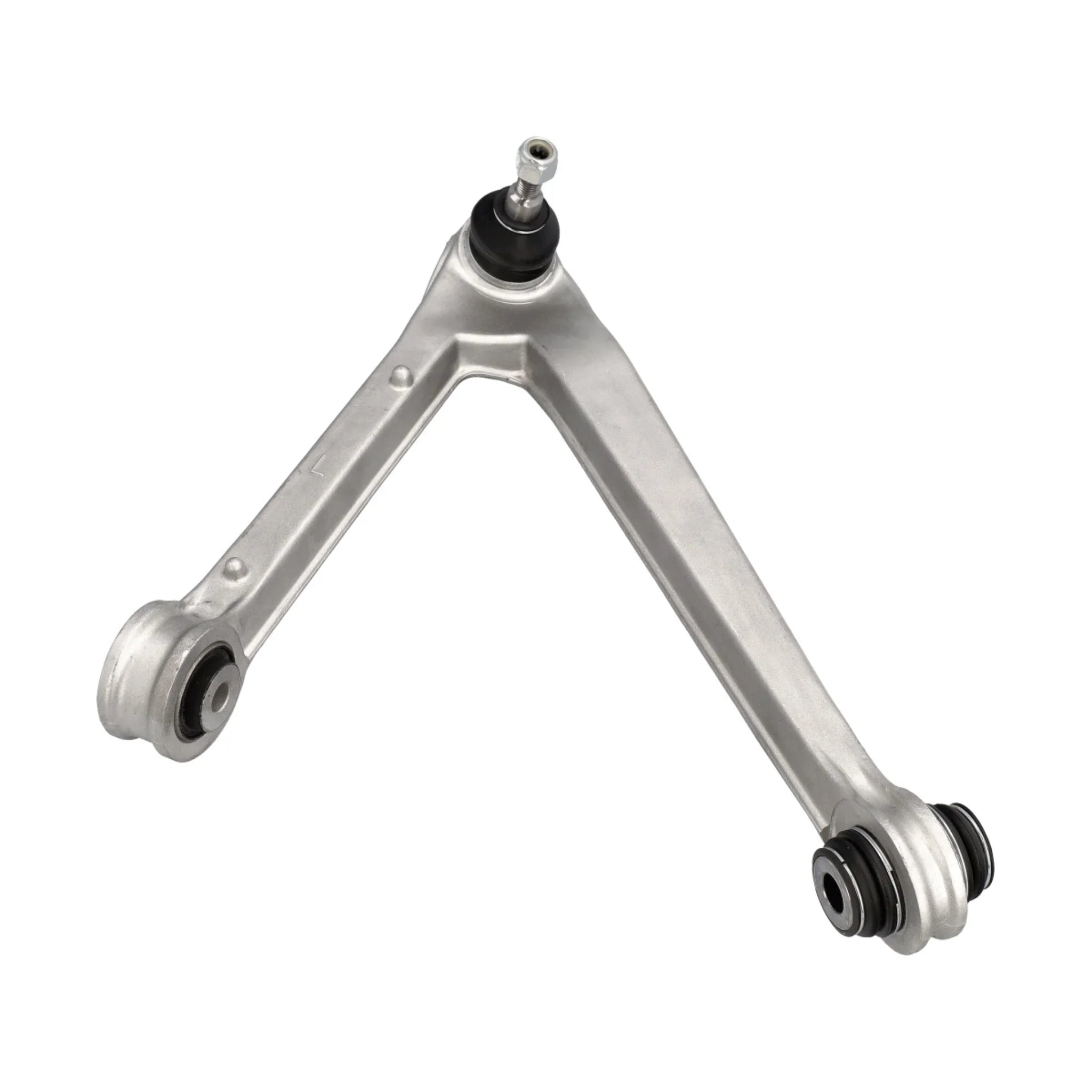

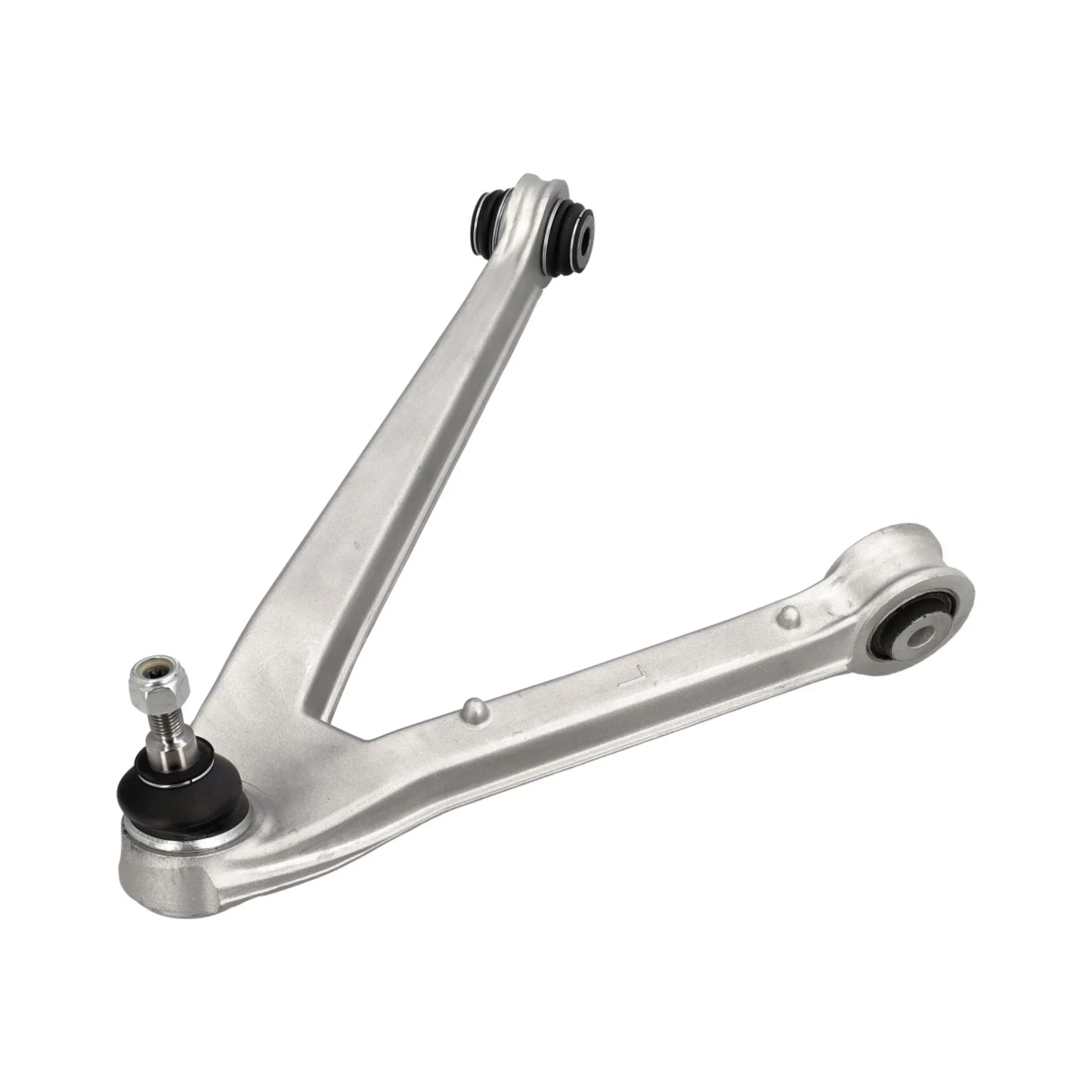

V-Link, rear lower (V-brace) – Porsche 993

Rear V-shaped Wishbone / Lower V-Strut – Porsche 993 (LSA Axle)

V-shaped rear axle wishbone for precise wheel guidance and stabilization of the rear axle.

Details at a glance

• V-shaped wishbone for the rear axle
• Guides the rear wheel hub and controls toe & camber
• With interfaces for bushings and ball joint
• Diagram reference no. 6
• Sold individually

Description

The rear V-shaped wishbone of the Porsche 993 plays a central role within the multi-link rear axle. It guides the rear wheel hub, controls toe and camber under load, and thus keeps the entire rear axle geometry stable. The integrated bearing and ball joint mounts ensure precise wheel guidance even under dynamic stress. Wear on this component can noticeably impair driving behavior – a replacement reliably restores original driving stability, directional stability, and safety.

Technical Data

• Position: Rear axle
• Design: V-shaped wishbone
• Version according to OEM geometry

Compatibility / Vehicle Assignment

• Porsche 993 (911) C2 – 1994–1997
• Porsche 993 (911) C4 – 1994–1997
• Porsche 993 (911) C2S – 1994–1997
• Porsche 993 (911) C4S – 1994–1997
• Porsche 993 (911) Turbo – 1994–1996
• Porsche 993 (911) GT2 – 1994–1997
• Porsche 993 (911) Turbo S – 1994–1997

Scope of Delivery

• 1× rear V-shaped wishbone

Note

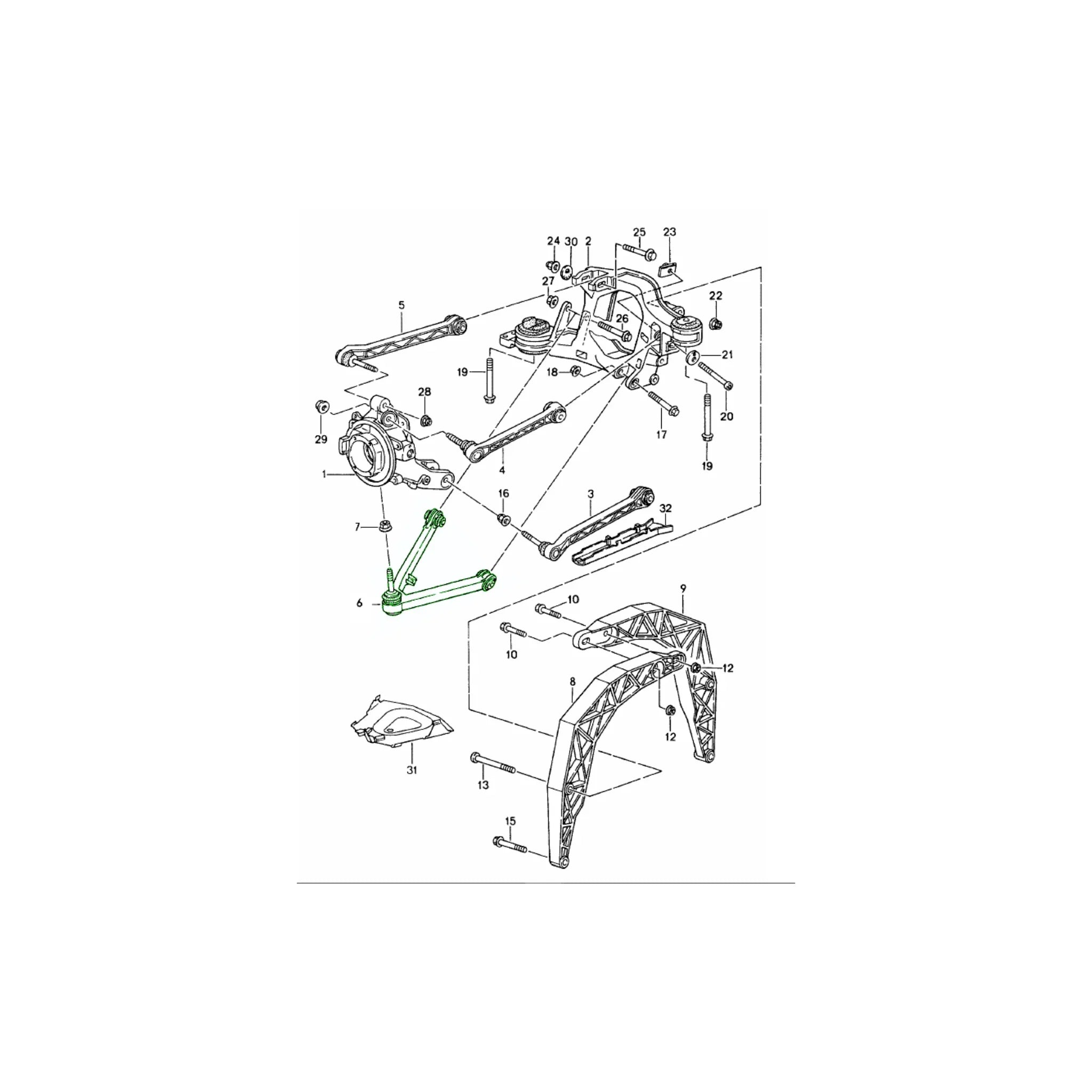

Click "Enlarge" to view a large parts diagram (diagram reference no. 6).
