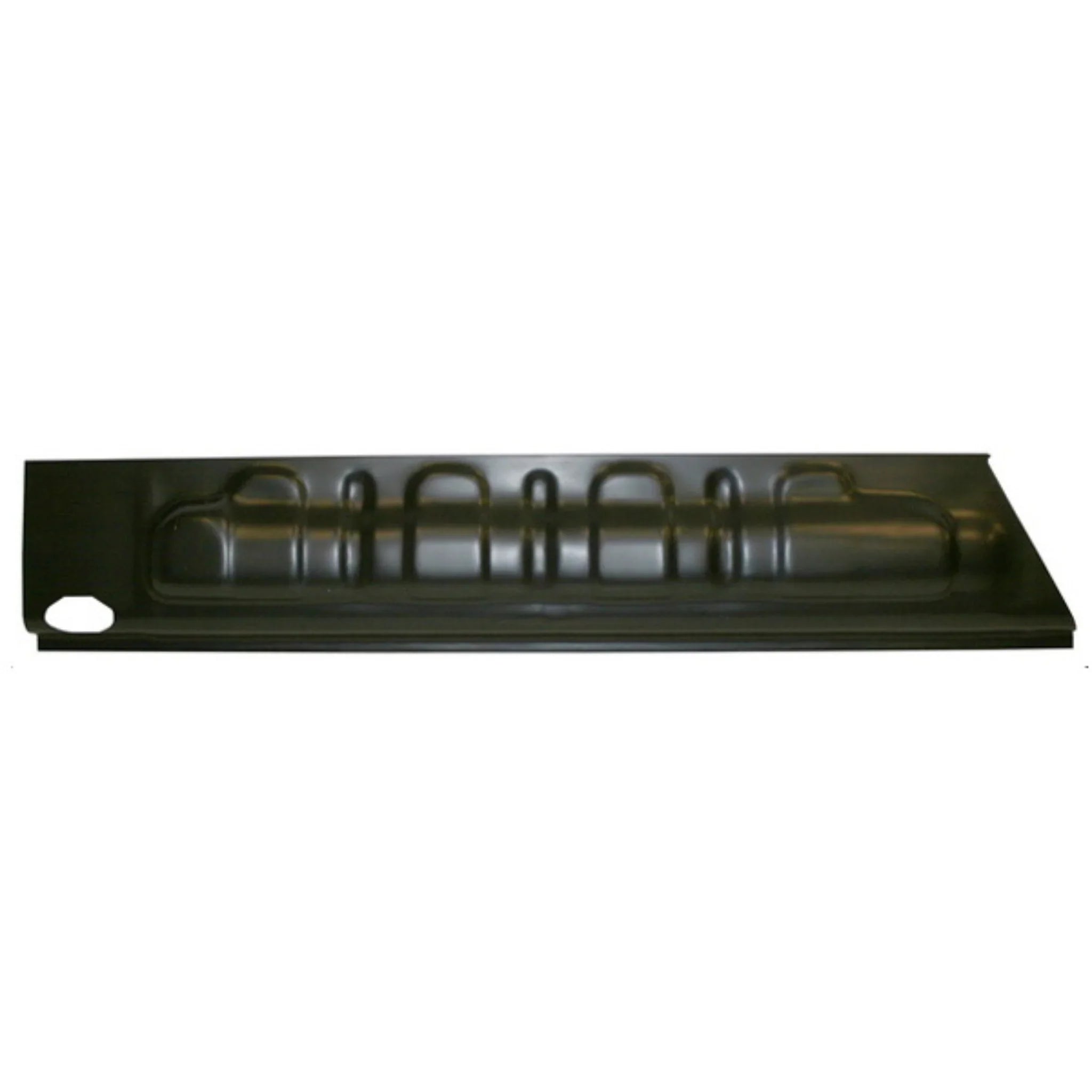

Inner Sill Panel (1.5mm reinforced) – Porsche 911 / 964

Door sill inner panel – 1.5 mm thickness (Porsche 911 / 964 / 993)

Robust inner sheet metal for the door sill area in 1.5 mm material thickness, suitable for left or right side.

Details at a glance

• Inner sheet metal for the door sill structure
• Material thickness: 1.5 mm
• Available for left or right side of vehicle
• Optional: suitable weld-on brackets for oil lines and outer sills (part no. 17853)
• Ideal for restoration or structural repair

Description

The inner door sill panel is a load-bearing structural element in the side sill area and forms the internal connection between the sill, floor panel, and other structural components. With a material thickness of 1.5 mm, the panel provides a stable base for professional repairs to the body structure. It is suitable for both repairing corrosion-damaged areas and for complete restorations. For authentic installation, specific weld-on brackets for the oil lines and the outer sill mounting may also be required.

Technical data

• Material thickness: 1.5 mm
• Side selection: left or right
• Diagram reference number: 8

Compatibility / Vehicle Assignment

• Porsche 911 (2.0–3.3) – 1968 to 1989
• Porsche 964 (3.3–3.6) – 1988 to 1994
• Porsche 993 (3.6–3.8) – 1993 to 1997

Scope of delivery

• 1× Door sill inner panel (left or right, depending on selection)

Notice

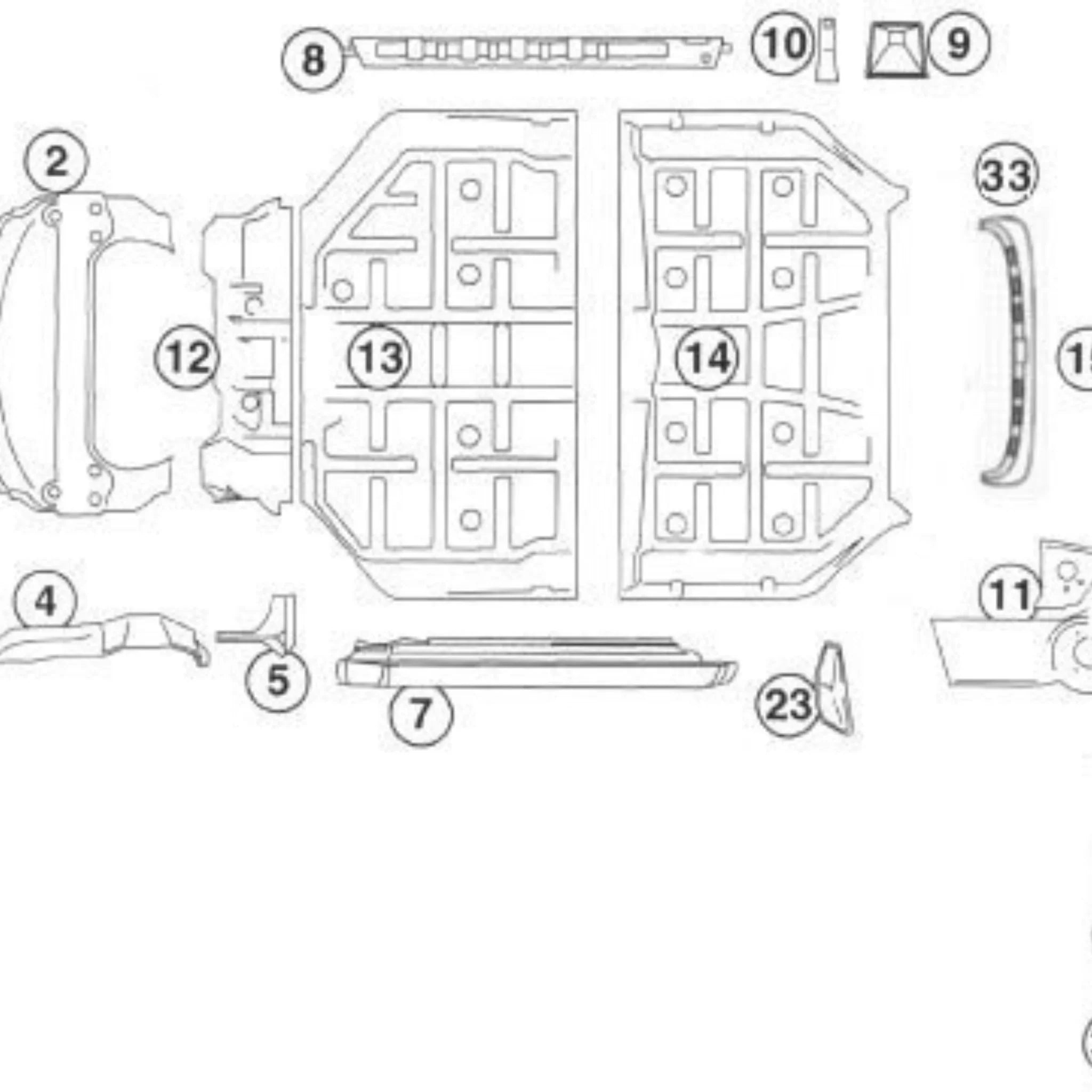

For the installation position, see diagram reference no. 8. Optionally required brackets:
Weld-on brackets for the oil line brackets and for attachment to the outer side sill; part number 17853.
