SACHS Race Clutch Disc (225mm) - 915 Transmission

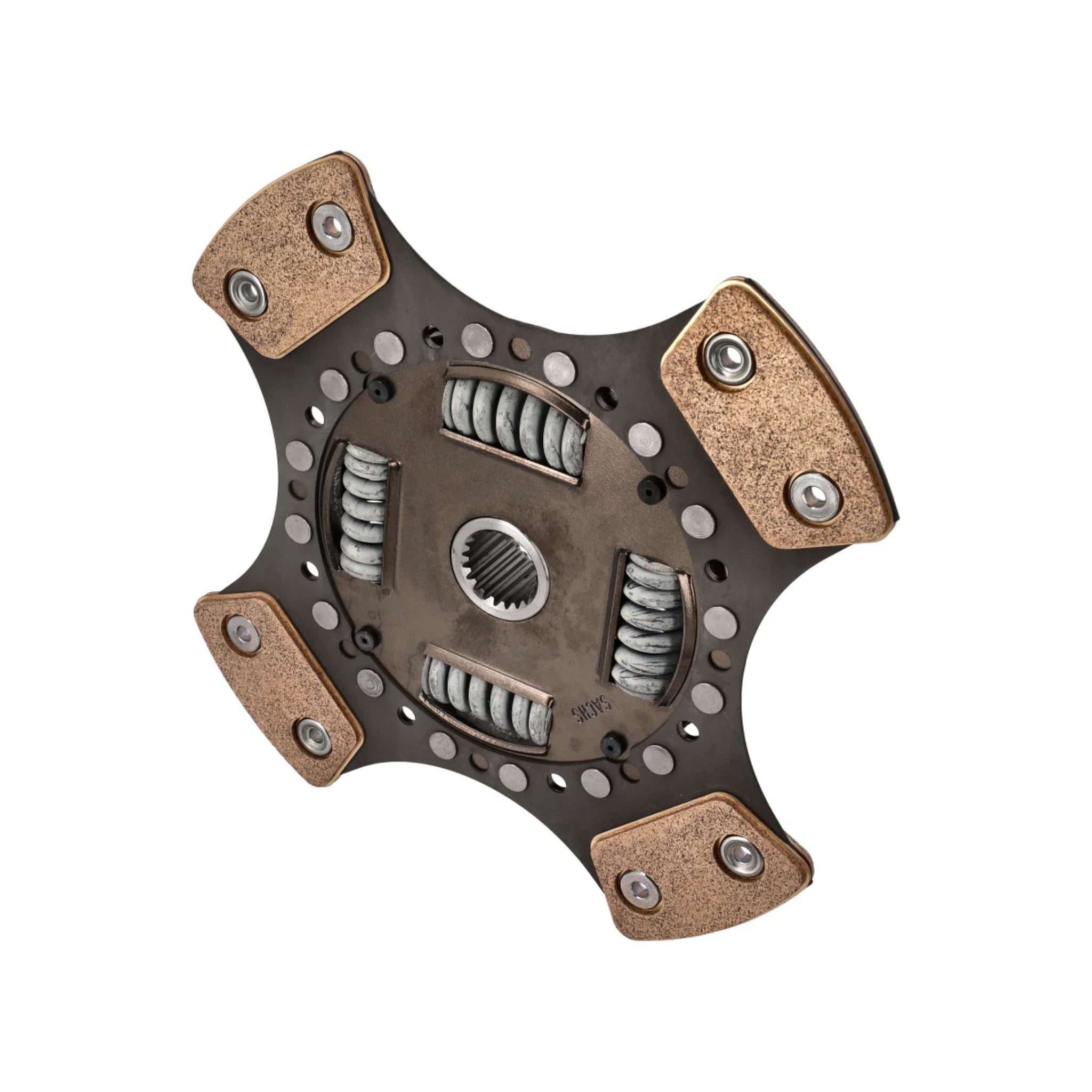

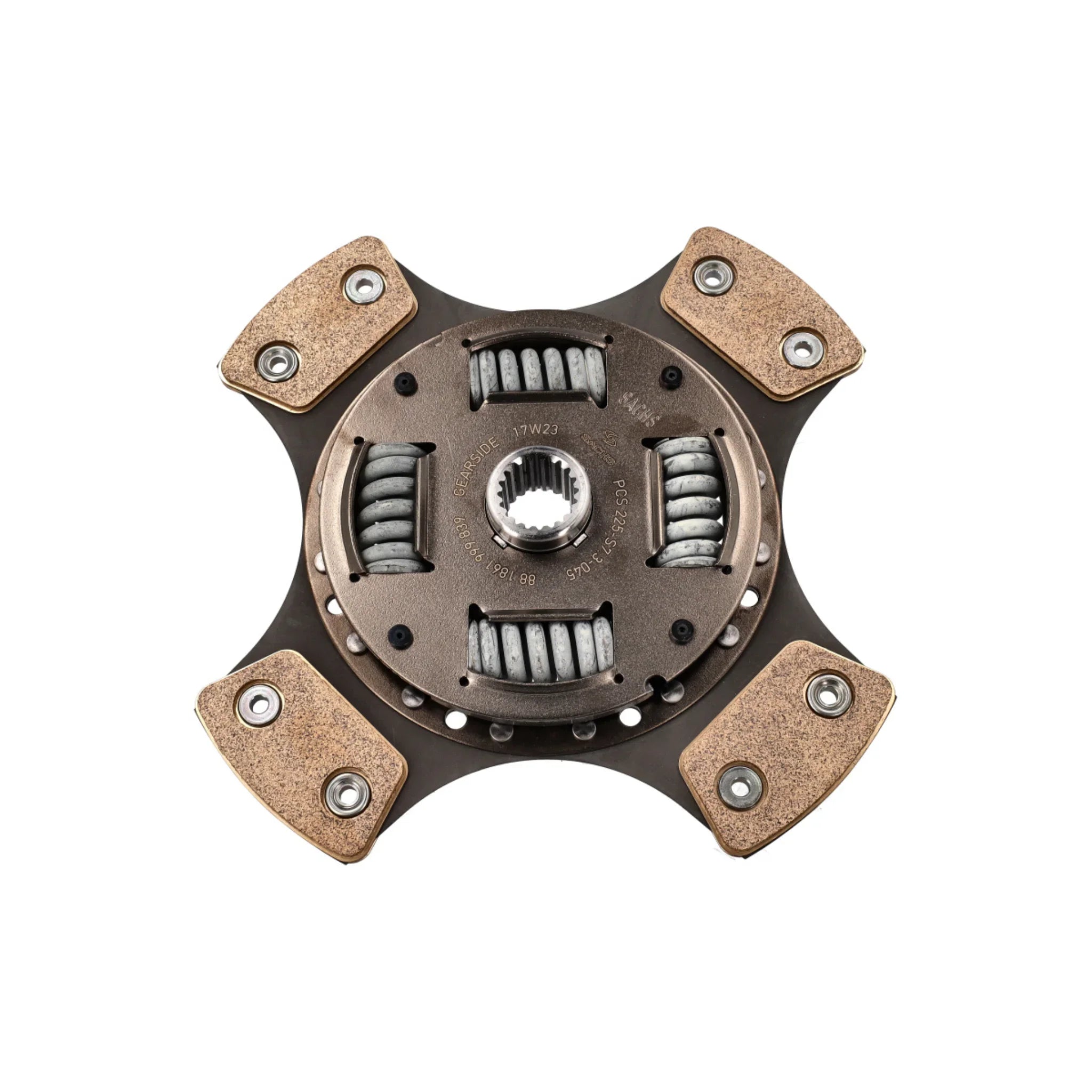

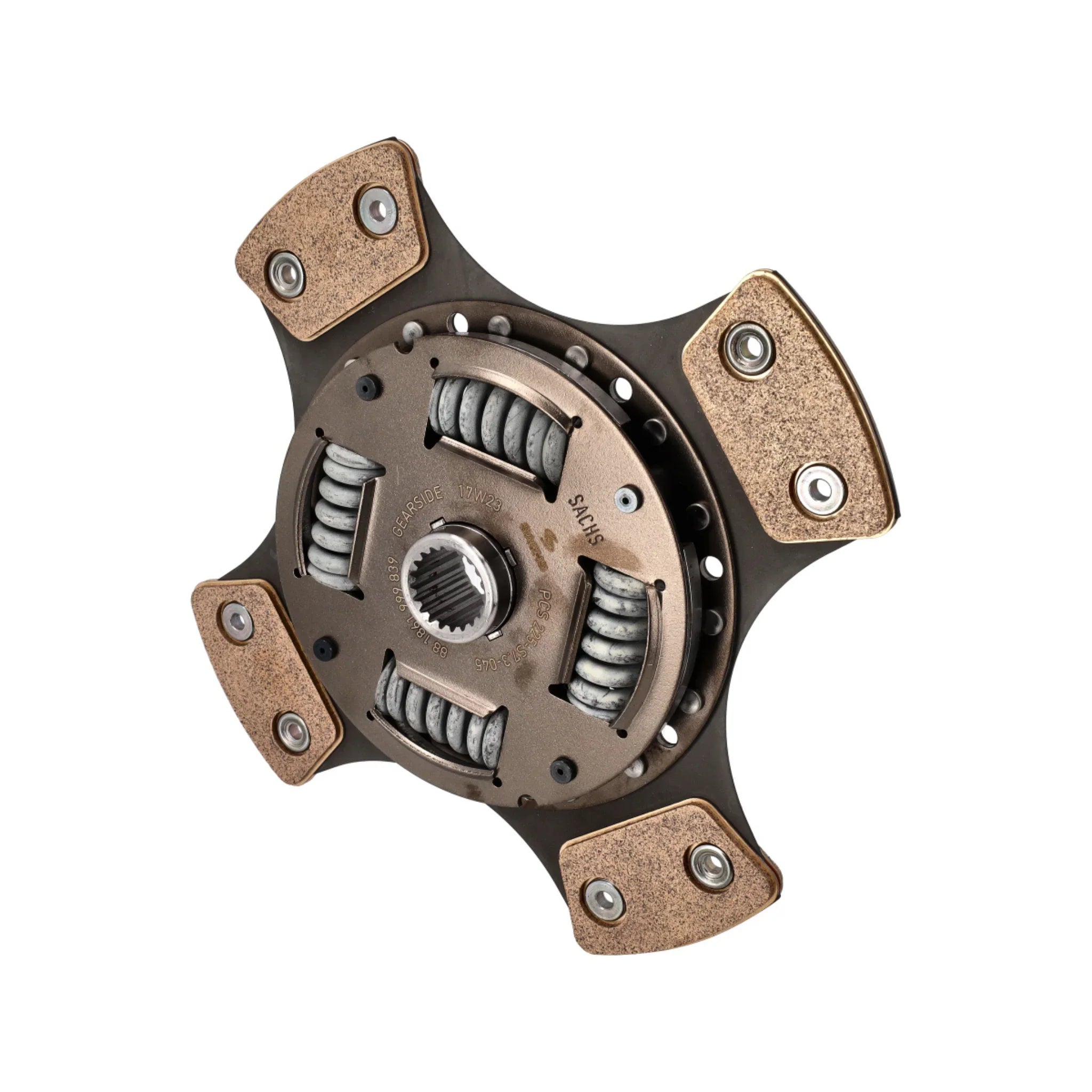

SACHS ZF Race clutch driven disc – 225 mm (915 transmission)

High-performance clutch disc from SACHS ZF in motorsport design. Developed for the 915 gearbox of classic Porsche 911 models. Designed for high thermal loads, aggressive response and a maximum torque of up to 320 Nm.

Details at a glance

• SACHS ZF Race clutch disc – Motorsport version
• Diameter: 225 mm (225TS)
• Number of teeth: 20
• Hub profile: 20.1 x 22.3 - 20N
• Maximum transmissible torque: 320 Nm
• Torsionally damped disc with reinforced damper unit
• Optimized for high torque loads and sporty use

Description

The SACHS ZF Race clutch disc is a clutch component specifically developed for motorsport and designed for Porsche models with the 915 transmission. The torsional damper unit features an increased stop and is designed for significantly higher torque loads than conventional OE clutch discs.

Thanks to the reinforced torsion system, vibrations between the engine and transmission are efficiently absorbed, while simultaneously ensuring aggressive power transmission – ideal for sport-tuned vehicles, track days, and performance-optimized engines. The disc offers increased thermal capacity and precise response, making it perfectly suited for higher performance levels.

This race disc is the perfect choice for riders seeking maximum durability, direct power transmission, and reliable performance.

Technical data

• Diameter: 225 mm
• Type: 225TS Race version
• Number of teeth: 20
• Hub profile: 20.1 x 22.3 - 20N
• Maximum torque: 320 Nm
• Coupling type: Torsionally damped

Compatibility / Vehicle Assignment

• Porsche 911 T 2.3 (08/1971–12/1973)
• Porsche 911 E 2.3 (08/1971–12/1973)
• Porsche 911 S 2.3 (08/1971–01/1976)
• Porsche 911 2.7 (09/1973–06/1977)
• Porsche 911 2.7 S Carrera (08/1973–01/1976)
• Porsche 911 2.7 SC Carrera RS (08/1972–01/1979)
• Porsche 911 3.0 SC Carrera (03/1974–10/1983)
• Porsche 911 3.2 SC Carrera (1984–1986)

Scope of delivery

• 1 × SACHS ZF Race clutch driven disc 225 mm

Notice

The disc is designed for maximum performance and is particularly suitable for high-performance engines and sporty applications. Optimal performance is achieved in combination with a matching Sachs Performance clutch cover.
