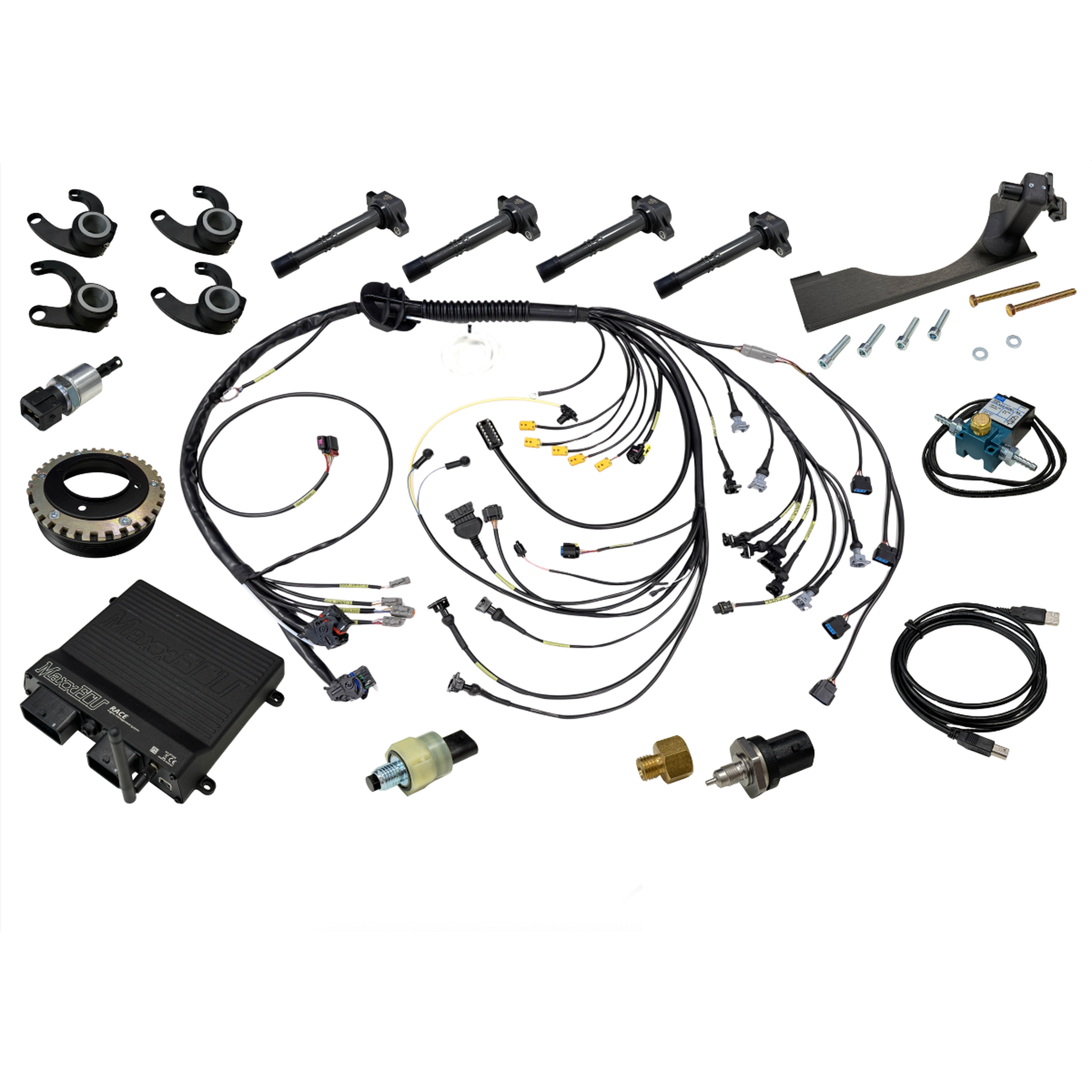

Engine Wiring Harness for Porsche 944 TURBO (951) Maxx ECU 1986-1991

Complete plug & play engine kit for the Porsche 944 / 944 Turbo Includes: MaxxECU RACE ECU Full plug-and-play wiring harness Programming cable for the ECU Boost solenoid with hoses and adapters Water temperature/pressure sensor with adapter Fuel pressure/temperature sensor Intake air temperature sensor and weld bung Coils and coil mounts Front mount trigger kit For additional co.

Scope of delivery: - MaxxECU RACE ECU - Complete plug-and-play wiring harness - Programming cable for the ECU - Boost solenoid with hoses and adapters - Water temperature/pressure sensor with adapter - Fuel pressure/temperature sensor - Intake air temperature sensor and weld bung - Coils and coil mounts - Front mount trigger kit - For additional components such as injectors, please specify your power targets, and we can provide a flow-matched set of correctly sized injectors. - Below are all connections included in the wiring harness: - Can Keypad or any other CANBUS device, 12V and ground provided in the connector. - Mating connector with pins included - DBW throttle pedal - User input 1 - For controlling boost pressure or other ECU inputs - User input 2 - For controlling boost pressure or other ECU inputs - ABS - Sub - ECU - side - To get 4 wheel speed signals into the ECU. Traction control will be possible with this - Side 2 (sprint) - To control the boost gauge - To control the oil level gauge - To control the tachometer - Engine ground - DME T21 - Powers the ECU and all other engine-related 12V supplies - Oil pressure signal - Water temperature signal - Auxiliary water pump relay - WBO - Lambda - Boost control - Control a boost solenoid - Ignition adapter (+ secondary harness to ignition modules Denso 099700-115) - Other sub-harnesses available for various coils - Injector 1, 2,3,4 - Variocam (for 968 only) - Knock 1 - Knock 2 - ISV - Fuel - Fuel pressure and temperature sensor - EGT 1,2,3,4,5 - Crankshaft - For use with the original sensor for the 16 - Porsche - cam trigger. - Requires an aftermarket cam trigger kit for the 8V Porsche - IAT - Requires installation of a Bosch NTC sensor - TPS - or 968 - signal - Drive by wire - For use with Bosch DBW throttle body - PT H2O - Pressure and temperature sensor - Requires an aftermarket sensor and adapter - Temp Turbo - Oil pressure - H2O - Gauge

• Porsche 944
• Porsche 944 Turbo

If you have any questions, please feel free to contact us.
