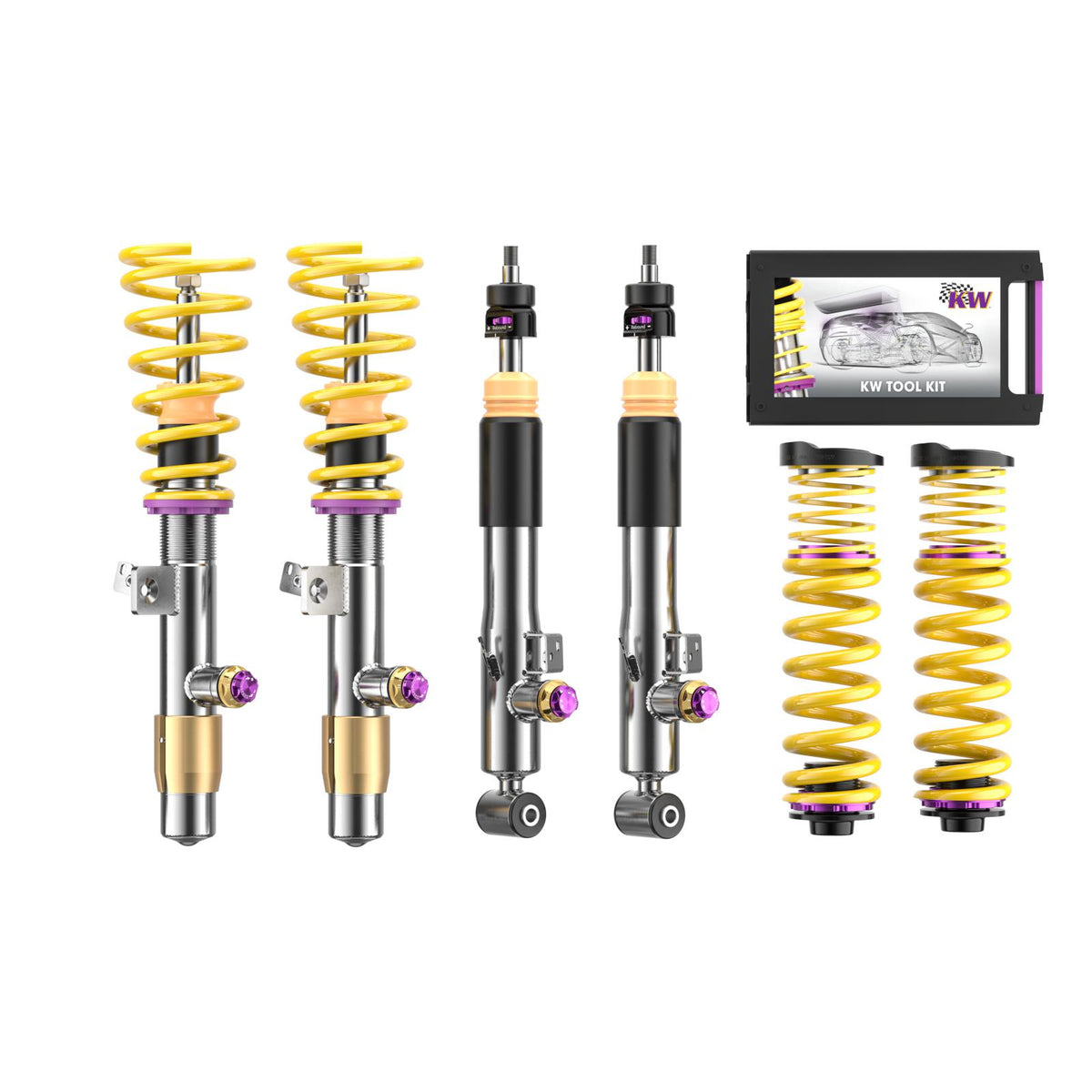

KW V4 Coilover Suspension | Porsche 992

The KW V4 coilover suspension for the Porsche 992 is a multi-way adjustable coilover suspension for sports cars and supercars.

Technical data

• Product line: Street Performance
• Damper adjustment: rebound and compression
• Adjustment front / rear: threaded / threaded
• Material: front: zinc-plated steel / rear: aluminium
• Approval: part type approval (Teiletypgenehmigung)

Scope of delivery

• Set of front + rear coilover struts (without PASM)
• Set of front + rear coilover struts incl. deactivation kit for the electronic damper control (with PASM)

Fits

• Carrera / T / S / GTS: 11/2018 to 04/2024, lowering front / rear 20–35 / 15–35 mm, axle load front / rear up to 875 / 1,350 kg, for vehicles without and with the standard lift system
• Carrera 4 / 4S / 4 GTS, Targa 4 / 4S / 4 GTS: 11/2018 to 04/2024, lowering front / rear 20–35 / 10–30 mm, axle load front / rear up to 875 / 1,370 kg, for vehicles without and with the standard lift system
• Turbo / Turbo S, Sport Classic: 04/2020 to 08/2025, lowering front / rear 25–55 / 20–45 mm, axle load front / rear up to 860 / 1,405 kg, for vehicles without and with the standard lift system

Note: The dampers have easy-to-use adjustment wheels. Due to the design, rebound can only be adjusted if the piston rod is accessible. V4 / V5 struts / dampers made of aluminium, or combined per axle from zinc-plated steel (front) and aluminium (rear). With PASM: the electronic damper control must be deactivated. The electronic kit for deactivation is included in the scope of delivery. Illustrations may differ slightly.

Manufacturer: KW automotive GmbH, Aspachweg 14, 74427 Fichtenberg, Germany, info@kwautomotive.de
