KW V3 Clubsport Coilover Suspension | Porsche 997

The KW V3 Clubsport coilover suspension for the Porsche 997 is designed for use on the road and on the race track.

Technical data

• Product line: Track Performance
• Damper adjustment: rebound and compression
• Adjustment front / rear: threaded / threaded
• Material: stainless steel
• Approval: parts certificate (Teilegutachten, §19.3)

Scope of delivery

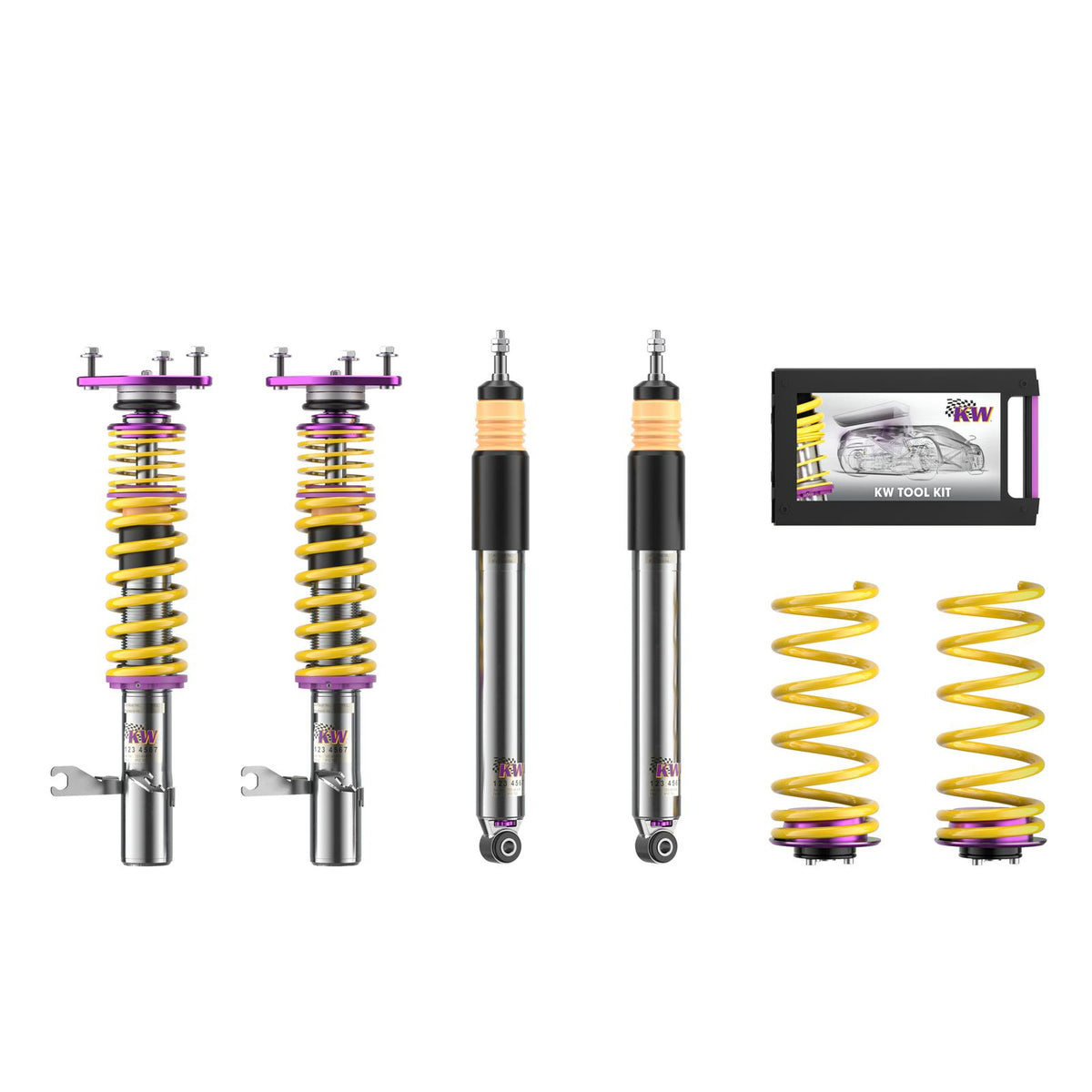

• Set of front + rear coilover struts incl. front + rear top mounts

Fits

• Carrera / Carrera S (not for GTS): from 07/2004, lowering front / rear 10–35 / 10–35 mm, axle load front / rear up to 775 / 1,220 kg
• Carrera 4 / 4S / 4 GTS, Turbo / Turbo S: from 03/2006, lowering front / rear 10–30 / 10–30 mm, axle load front / rear up to 825 / 1,250 kg
• GT2 / GT2 RS, GT3 / GT3 RS: from 05/2010, lowering front / rear 0–20 / 0–20 mm, axle load front / rear up to 825 / 1,250 kg

Note: On vehicles with electronic damper control, this must be deactivated. The dampers have easy-to-use adjustment wheels. Due to the design, rebound can only be adjusted if the piston rod is accessible. Clubsport suspension with top mounts: available with front + rear top mounts. Carrera 4 / 4S / 4 GTS, Turbo / Turbo S, GT2 / GT2 RS, GT3 / GT3 RS: the top mounts can also be combined with the KW coilover suspension. In some cases additional parts (springs, spacer rings) must be ordered as well. Please contact us about this. Illustrations may differ slightly.

Manufacturer: KW automotive GmbH, Aspachweg 14, 74427 Fichtenberg, Germany, info@kwautomotive.de

If you have any questions, we are happy to help.
