KW V3 Clubsport Coilover Suspension | Porsche 996

The KW V3 Clubsport coilover suspension for the Porsche 996 is designed for use on the road and on the race track.

Technical data

• Product line: Track Performance
• Damper adjustment: rebound and compression
• Adjustment front / rear: threaded / threaded
• Material: stainless steel

Scope of delivery

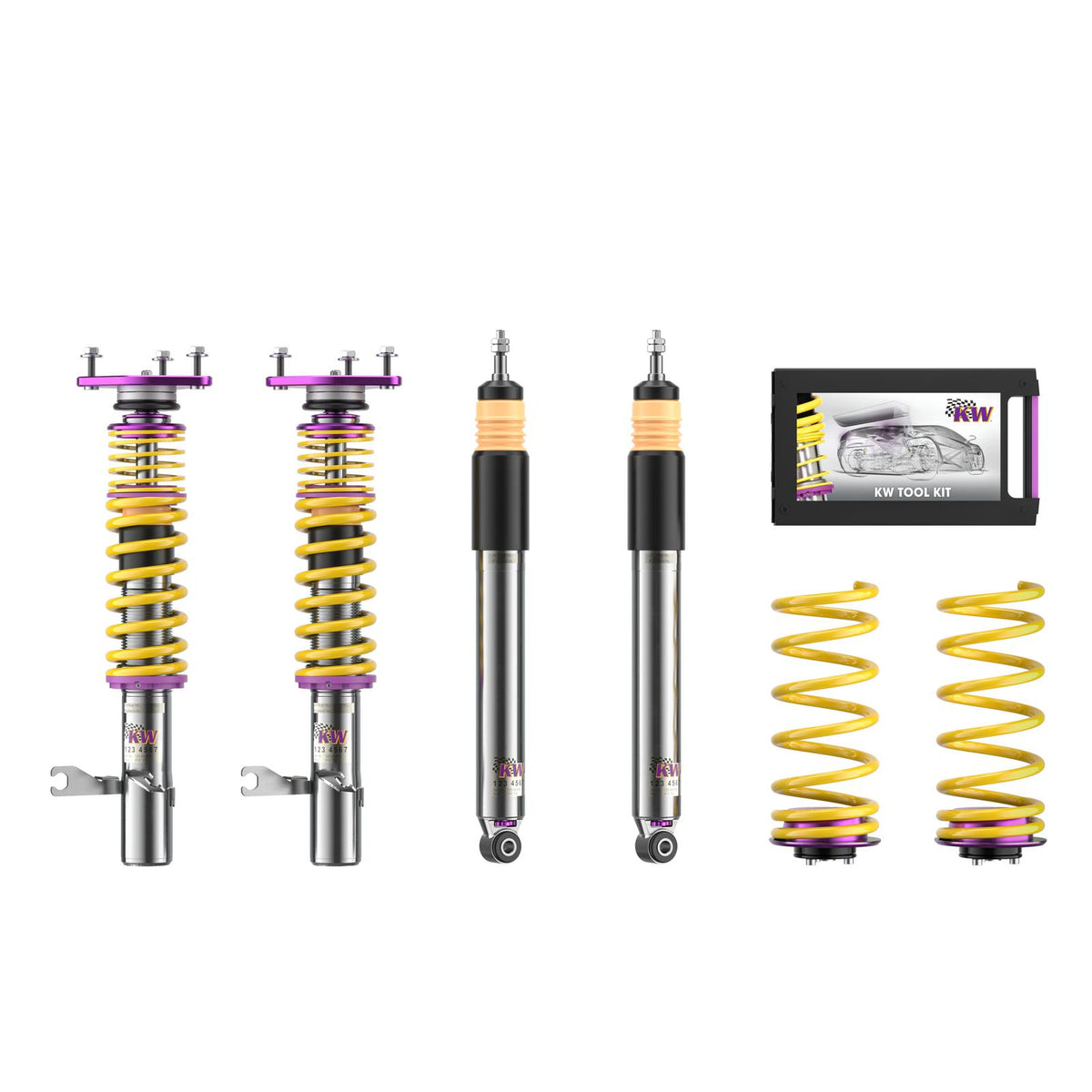

• Set of front + rear coilover struts incl. front + rear top mounts

Fits

• Carrera / Carrera S, Targa: from 09/1997, lowering front / rear 20–40 / 20–40 mm, axle load front / rear up to 825 / 1,180 kg, none (individual approval under §21 required)
• Carrera 4 / 4S, Turbo / Turbo S: from 09/1997, lowering front / rear 25–40 / 20–40 mm, axle load front / rear up to 825 / 1,250 kg, none (individual approval under §21 required)
• GT2, GT3 (not for Porsche GT3 RS): from 03/1999, lowering front / rear 0–30 / 10–40 mm, axle load front / rear up to 825 / 1,180 kg, parts certificate (Teilegutachten, §19.3)

Note: Carrera / Carrera S, Targa, Carrera 4 / 4S, Turbo / Turbo S: without parts certificate / TTG, optionally with strength certificates for individual approval under §21; Clubsport top mounts are generally without parts certificate / TTG. Carrera 4 / 4S, Turbo / Turbo S: the dampers have easy-to-use adjustment wheels. Due to the design, rebound can only be adjusted if the piston rod is accessible. GT2, GT3 (not for Porsche GT3 RS): Clubsport suspension with top mounts: available with front + rear top mounts. Illustrations may differ slightly.

Manufacturer: KW automotive GmbH, Aspachweg 14, 74427 Fichtenberg, Germany, info@kwautomotive.de

If you have any questions, we are happy to help.
