KW V3 Clubsport Coilover Suspension | Porsche 993

The KW V3 Clubsport coilover suspension for the Porsche 993 is designed for use on the road and on the race track.

Technical data

• Product line: Track Performance
• Damper adjustment: rebound and compression
• Adjustment front / rear: threaded / threaded

Scope of delivery

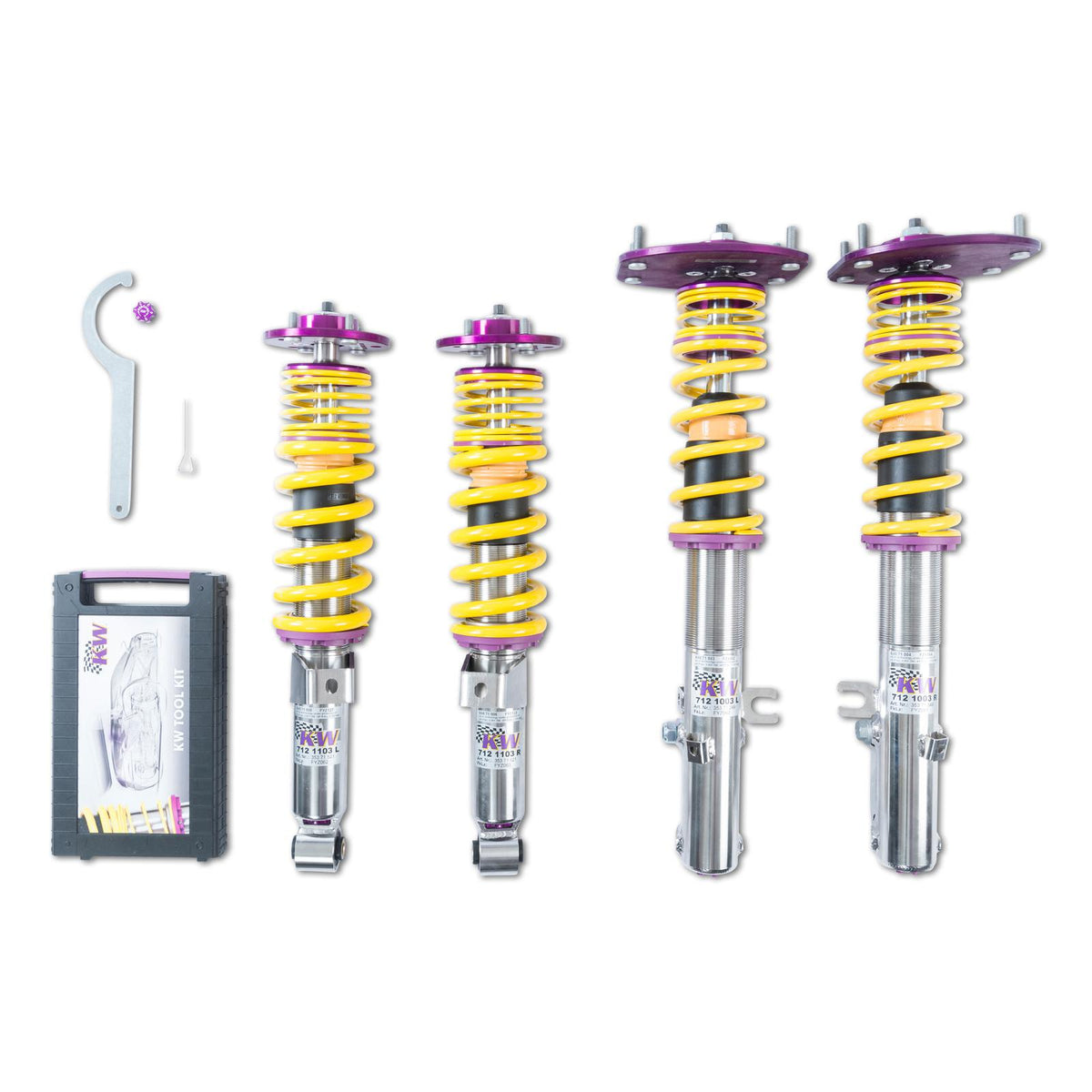

• Set of front + rear coilover struts incl. front + rear top mounts (Carrera, Carrera 4, Turbo, GT2)
• Set of front + rear coilover struts (Carrera RS)

Fits

• Carrera: 10/1993 to 09/1997, lowering front / rear 25–45 / 10–30 mm, axle load front / rear up to 760 / 1,080 kg, parts certificate (Teilegutachten, §19.3)
• Carrera 4, Turbo, GT2: from 07/1994, lowering front / rear 25–45 / 10–30 mm, axle load front / rear up to 760 / 1,150 kg, parts certificate (Teilegutachten, §19.3)
• Carrera RS: 06/1995 to 09/1997, lowering front / rear 0–30 / 10–30 mm, axle load front / rear up to 760 / 1,080 kg, none (individual approval under §21 required)

Note: Carrera, Carrera 4, Turbo, GT2: the dampers have easy-to-use adjustment wheels. Due to the design, rebound can only be adjusted if the piston rod is accessible. Clubsport suspension with top mounts: available with front + rear top mounts. Carrera: the top mounts can also be combined with the KW coilover suspension. In some cases additional parts (springs, spacer rings) must be ordered as well. Please contact us about this. Carrera RS: without parts certificate / TTG, optionally with strength certificates for individual approval under §21; Clubsport top mounts are generally without parts certificate / TTG. Illustrations may differ slightly.

Manufacturer: KW automotive GmbH, Aspachweg 14, 74427 Fichtenberg, Germany, info@kwautomotive.de

If you have any questions, we are happy to help.
