KW HLS 4 Hydraulic Lift System for KW Coilover Suspension | Porsche 996

The KW HLS 4 hydraulic lift system for KW coilover suspension for the Porsche 996 is a hydraulic lift system. The vehicle can be raised at the push of a button, for example for ramps and kerbs.

Technical data

• Product line: Street Comfort
• Hydraulics: front + rear
• Height adjustment: front + rear height-adjustable (coilover struts)
• Lowering front / rear: 0–15 / +10 to –10 mm
• Permissible axle load front / rear: up to 825 / 1,180 kg
• Approval: parts certificate (Teilegutachten, §19.3)

Scope of delivery

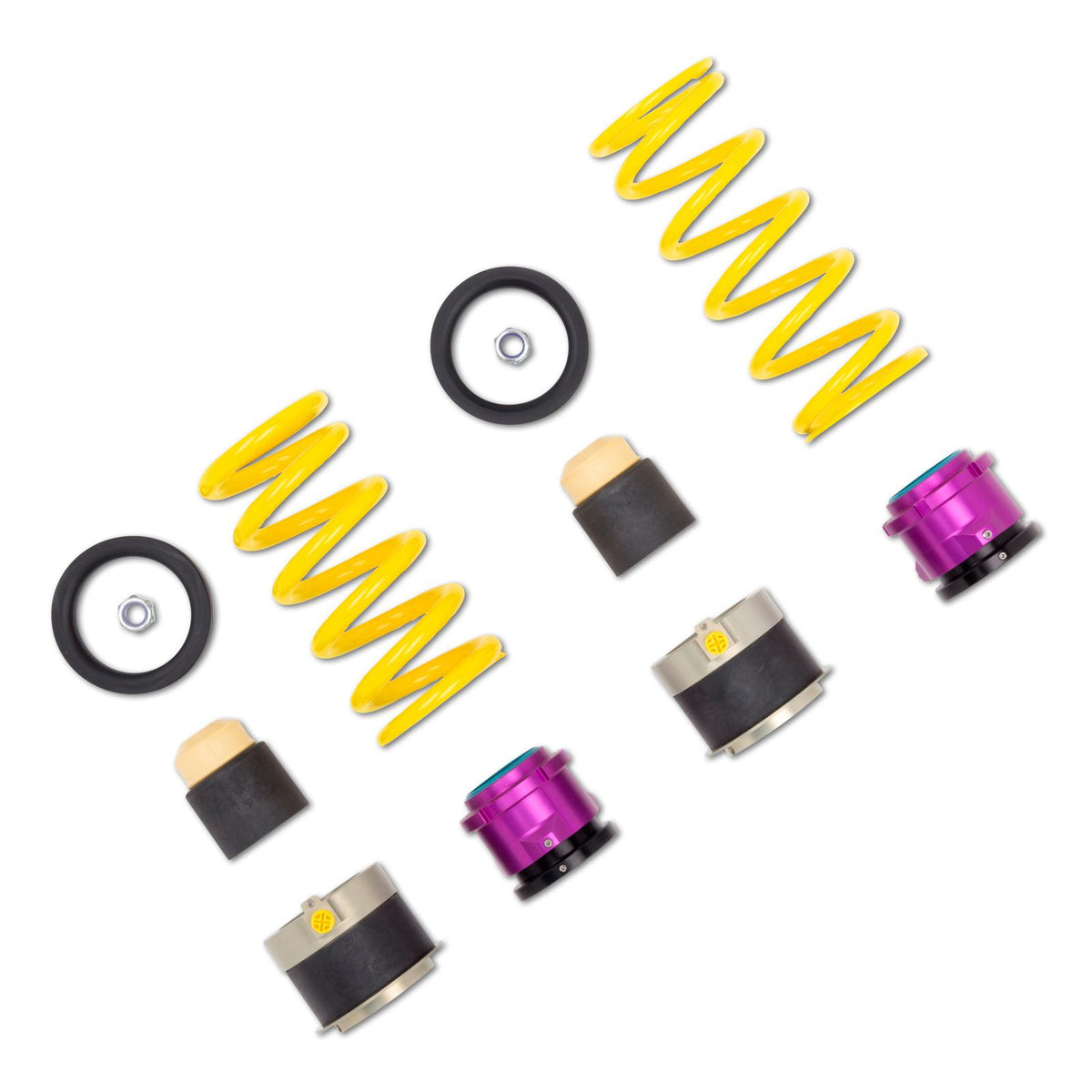

• Set (front + rear) incl. springs for KW coilover suspension

Fits

• GT2, GT3

Note: On vehicles with the Porsche Motorsport uniball top mount 99633301190 fitted at the rear axle, the KW top mount adapter kit must be used (KW part no. 685 10 036). On vehicles with an original battery longer than 278 mm, the battery must be converted. We recommend either the Varta Silver Dynamic 77 Ah or the Bosch S5 77 Ah (not included in the scope of delivery). Illustrations may differ slightly.

Manufacturer: KW automotive GmbH, Aspachweg 14, 74427 Fichtenberg, Germany, info@kwautomotive.de

If you have any questions, we are happy to help.
