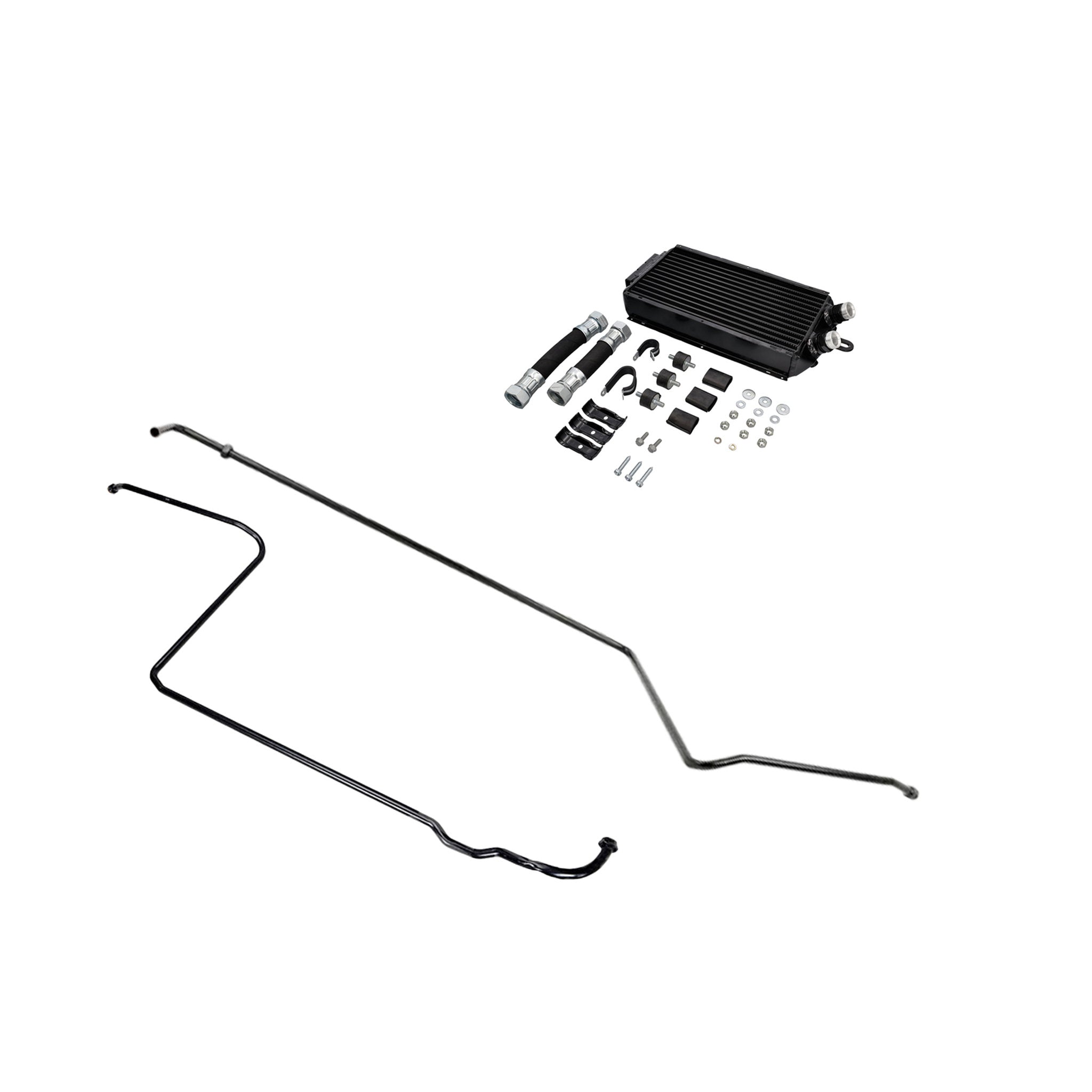

Oil cooler mounting kit, front cooler with lines | Porsche 911 SC 1980–1983 / 3.2

Extensive mounting kit for the front oil cooler. A set from eleven Select.

Technical data

• Contents: Numerous small parts, gaskets, brackets

Scope of delivery

• 1 × Oil return line, long, brass (930.207.046.03)
• 1 × Oil pipe to front cooler (930.207.113.06)
• 1 × Oil inlet pipe, long, brass (930.207.045.03)
• 1 × Oil pipe to front cooler (930.207.111.07)
• 1 × Front oil cooler (930.207.053.04)
• 3 × Oil cooler rubber mount (999.703.263.00)
• 3 × Washer (900.025.007.03)
• 6 × Lock nut, oil cooler rubber mount
• 3 × Oil pipe retaining clamp (911.207.302.00)
• 2 × Lock nut B6
• 3 × Bracket for long oil lines (911.207.303.00)
• 3 × Washer (900.151.007.03)
• 3 × Sheet metal screw 6.3 × 32 (900.187.032.03)
• 1 × Oil pipe support clamp (999.511.084.02)
• 1 × Oil pipe support clamp (999.511.080.02)
• 2 × Hex bolt M6 × 20 (900.378.030.01)

Fits

• Porsche 911 SC 1980-83
• Porsche 911 3.2L 1984-89

If you have any questions, we are happy to help.
