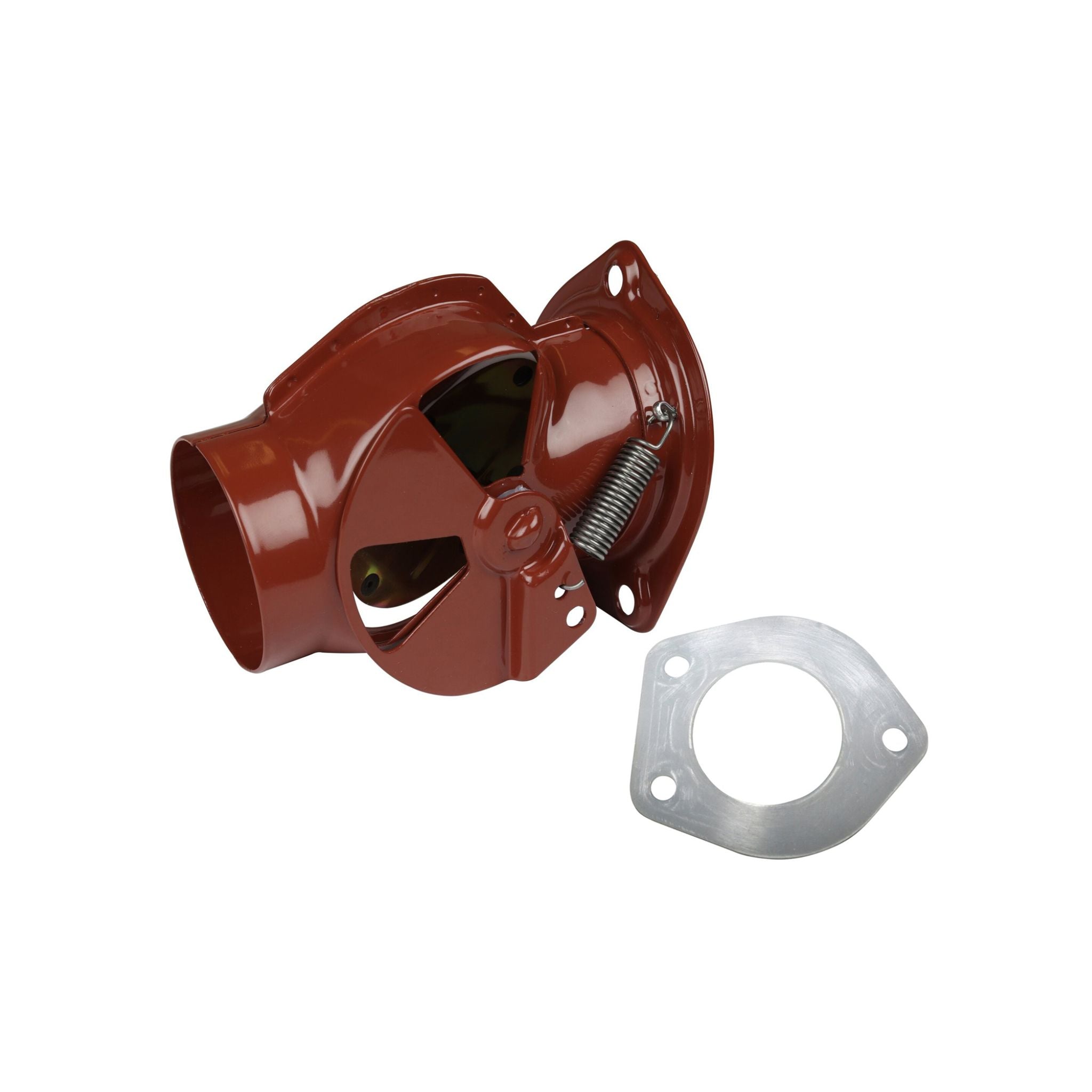

Heat Exchanger Flap – Red – Porsche 911 F- & G-Models (1965–1986)

High-quality heater flap (control box) for heat exchangers. Suitable for Porsche 911 and 930 Turbo (1965–1986).

• Heater flap box for heat exchangers
  "Red" version:
• Optimized seal against exhaust fumes and unwanted warm air
• Suitable for: Porsche 911 F- & G-Models (up to 1986)

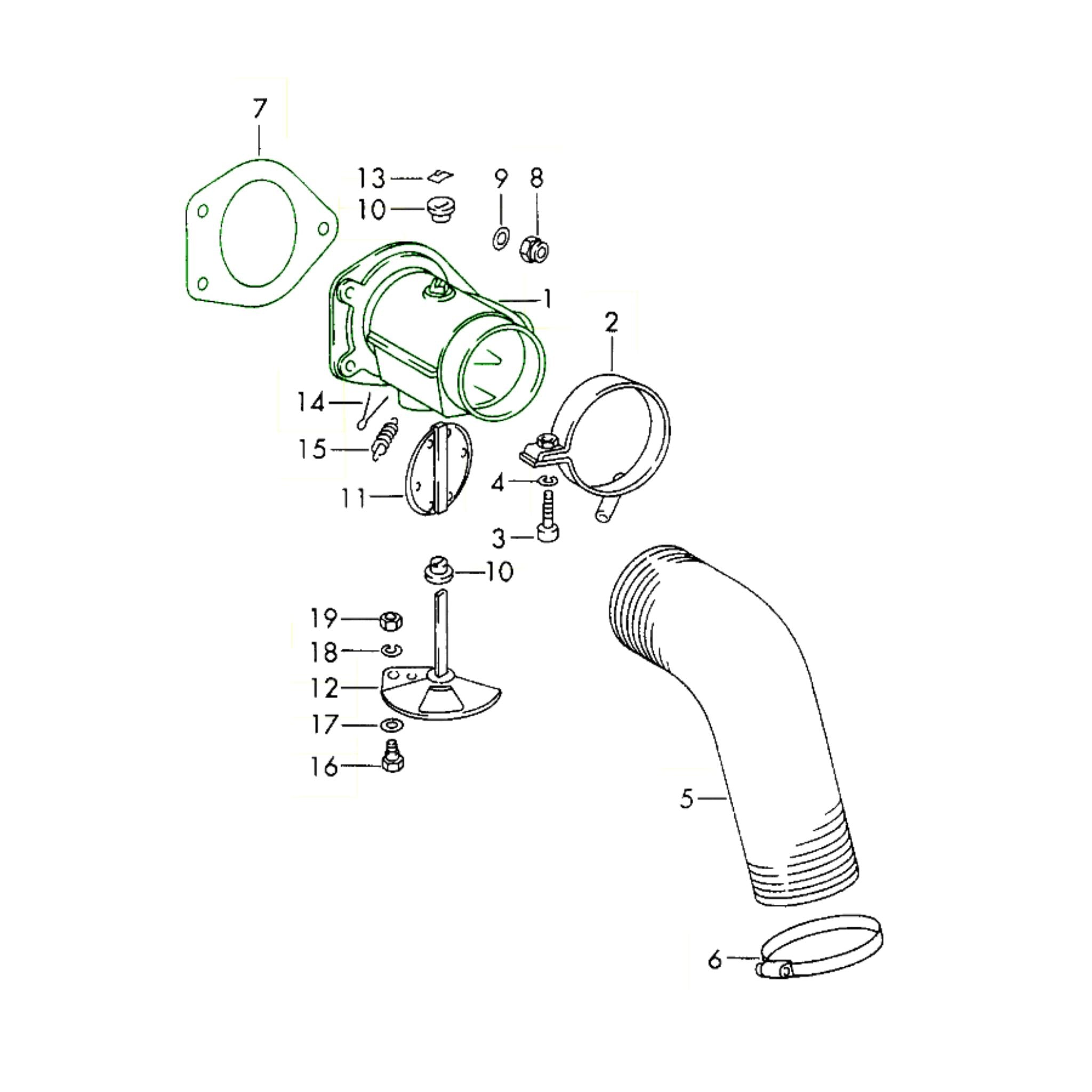

• Reference: Diagram Position No. 1

This heater flap (also called a heater box or control box) regulates the supply of warm air from the heat exchanger into the interior of your Porsche 911. The Red version indicates the use of modern, highly heat-resistant sealing materials (often silicone) inside the flap.

Compared to standard flaps, which often only have metal-on-metal seals or simple foams, this version seals significantly tighter. This means: no hot air in the interior in summer when the heating is "off", and more efficient heating performance in winter. In addition, the penetration of exhaust fumes is minimized. Ideal as a replacement for rusted or mechanically defective original boxes.

Technical Data

• Installation location: Between heat exchanger and bodywork
• Type: Mechanical heater flap

• Diagram No.: 1

Compatibility

• Porsche 911 F-Model – Model years 1965 to 1973
• Porsche 911 G-Model – Model years 1974 to 1983
• Porsche 911 Carrera – Model years 1984 to 1986
• Porsche 911 Turbo (930) – Model years 1975 to 1986

Scope of Delivery

• 1 × Heater flap (Red)

Note

Please check whether you need the left or right side before ordering (or order 2 pieces for a complete replacement).
