Piston & Seal Kit, Front Brake Caliper | Porsche 718 GTS 4.0, 991, 992.1 (from 2012)

Piston and seal kit in original equipment quality for the overhaul of a front 6-piston brake caliper on the Porsche 991, 992.1 and 718 Boxster/Cayman GTS 4.0. The kit contains pistons, piston seals, dust boots and bleed screws with caps. New pistons and seals fix typical problems such as brake fluid loss, seized or corroded pistons and uneven piston movement.

Technical data

• Quality: original equipment quality
• For 6-piston front axle brake calipers
• Piston diameter: 30, 32 and 34 mm (2 pieces each)
• 1 kit per brake caliper

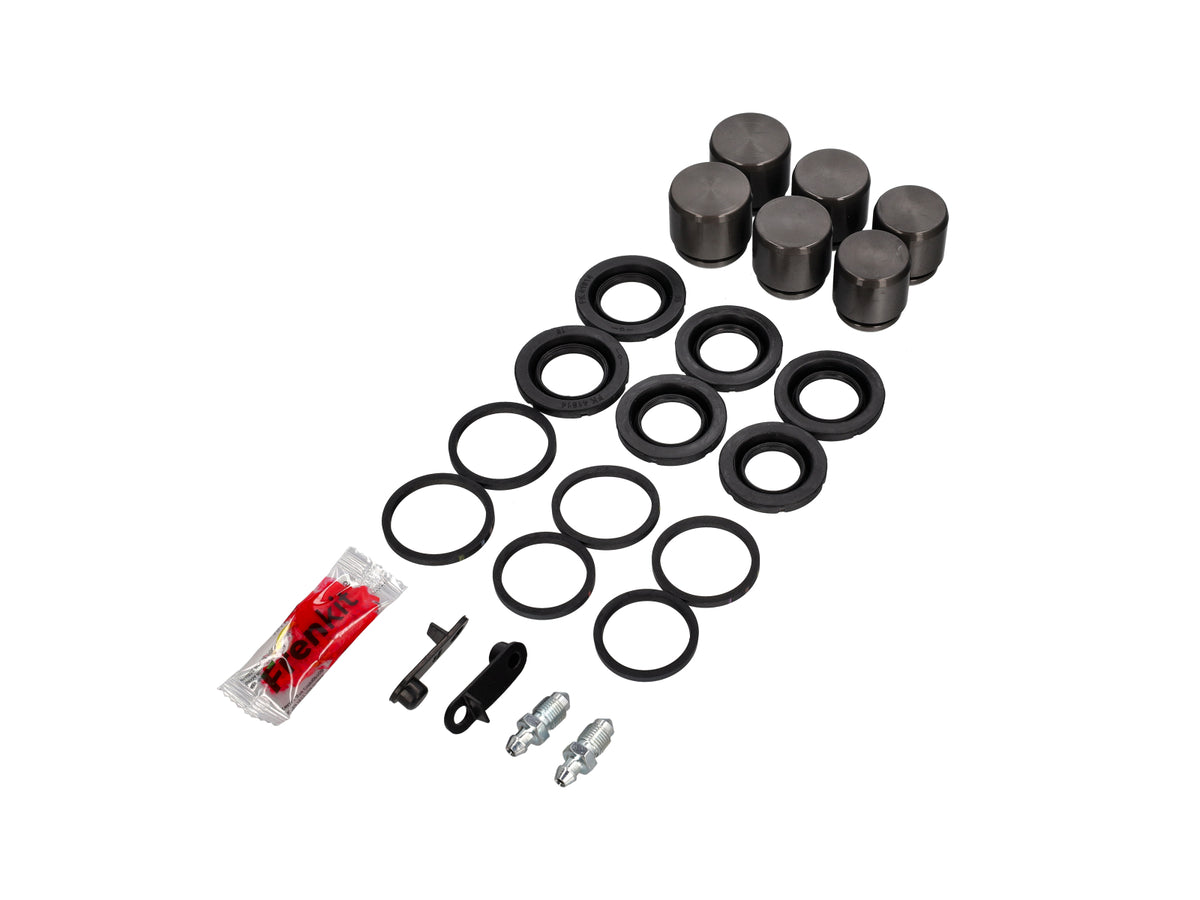

Scope of delivery

• 2 × piston 30 mm
• 2 × piston 32 mm
• 2 × piston 34 mm
• 2 × dust boot 30 mm
• 2 × dust boot 32 mm
• 2 × dust boot 34 mm
• 2 × piston seal 30 mm
• 2 × piston seal 32 mm
• 2 × piston seal 34 mm
• 2 × bleed screw with cap

Fits

• Porsche 718 Boxster GTS 4.0, manual gearbox / PDK (400 hp, from 01/2019)
• Porsche 718 Cayman GTS 4.0, manual gearbox / PDK (400 hp)
• Porsche 991.1 Carrera S / Carrera 4S / GTS 3.8 (400 / 430 hp, 2012–2016)
• Porsche 991.1 Turbo / Turbo S 3.8 (520 / 560 hp, 2014–2016)
• Porsche 991.2 Carrera S / Carrera 4S / GTS 3.0, Coupé and Cabriolet (2016–2019)
• Porsche 991.2 Targa 4S / GTS 3.0 (2016–2019)
• Porsche 991.2 Turbo / Turbo S 3.8, Coupé and Cabriolet (540 / 580 hp, 2016–2019)
• Porsche 992.1 Carrera / Carrera 4 3.0, Coupé and Cabriolet (2019–2024)
• Porsche 992.1 Carrera S / Carrera 4S / GTS 3.0, Coupé and Cabriolet (2019–2024)
• Porsche 992.1 Targa 4 / Targa 4S / GTS 3.0 (2020–2024)
• 992.1: only for vehicles with option codes E0A and E2M

Porsche reference numbers: 9P1698671, 9P1698671A, 9P1698671B, 991952230

Note: One kit is enough for one brake caliper; 2 kits are required for both front brake calipers. Check the piston diameters of your brake caliper before ordering.

If you have any questions, we are happy to help.
